Used Caterpillar 323D2 Excavator

Reading: 68

📌 Overview

The Cat 323D2 is a mid-size hydraulic excavator (20–25 ton class) manufactured by Caterpillar Inc. It belongs to the D2 Series (Generation 2), designed for general construction, road building, utilities, and landscaping applications. It replaced the earlier 323D/323DL models with improved efficiency, comfort, and technology.

🔧 Key Specifications

Parameter	Details
Operating Weight	~23,000 – 24,200 kg (50,700 – 53,400 lbs)
Engine	Cat® C4.4 ACERT® Diesel
Engine Power	129 hp (96 kW) @ 2,000 rpm
Bucket Capacity (SAE)	0.8 – 1.2 m³ (1.0 – 1.6 yd³)
Max Digging Depth	~6,710 mm (22 ft 0 in)
Max Reach (Ground Level)	~9,820 mm (32 ft 3 in)
Max Dumping Height	~7,220 mm (23 ft 8 in)
Max Digging Force	~135 kN (30,400 lbf)
Swing Speed	10.5 rpm
Travel Speed	5.2 km/h (3.2 mph)
Fuel Tank Capacity	~400 L (106 gal)
Hydraulic Flow	2 × 220 L/min (58 gal/min)

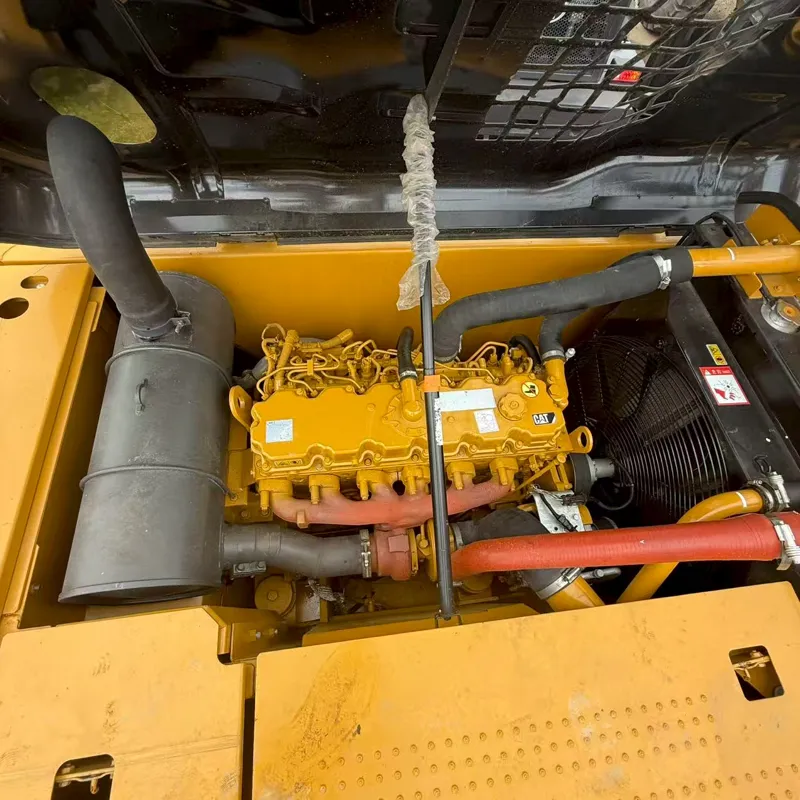

& Engine — Cat C4.4 ACERT

Feature	Detail
Type	4-cylinder, turbocharged, aftercooled diesel
Displacement	4.4 L (269 cu in)
Emissions	EPA Tier 4 Final / EU Stage V
Technology	ACERT (Advanced Combustion Emission Reduction Technology)
Features	DOC + DPF + SCR (DEF) aftertreatment system

✅ Provides excellent fuel efficiency (~10–15% better than D1 series) and meets the strictest emission standards.

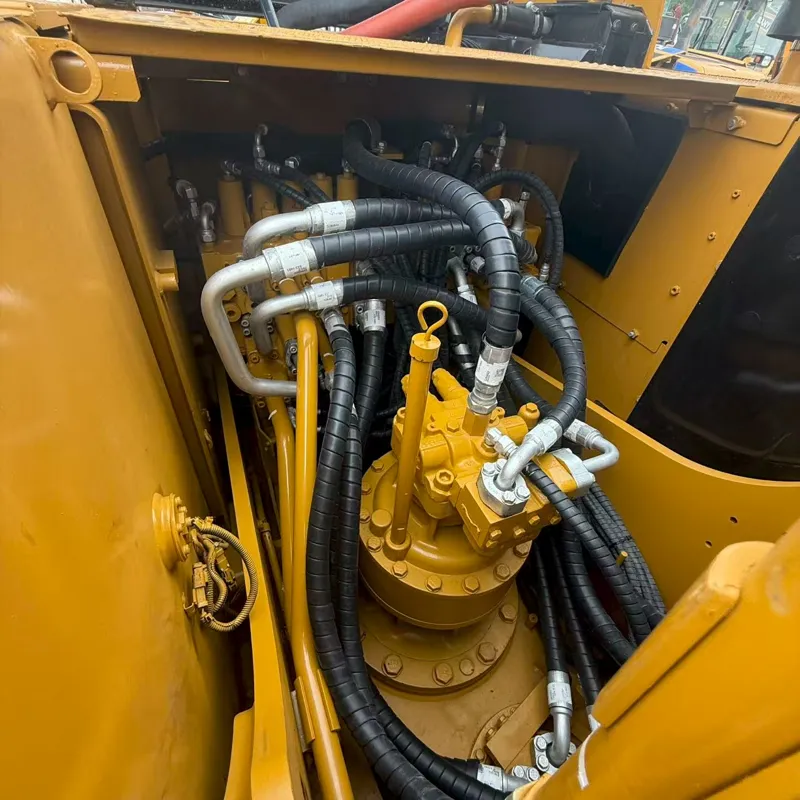

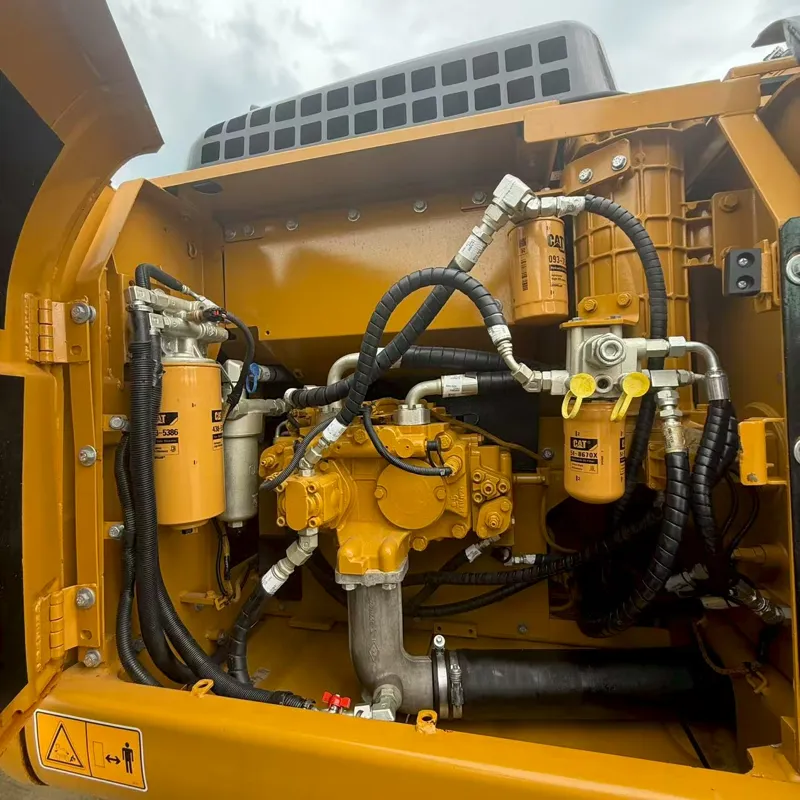

🏗️ Hydraulic System

Feature	Detail
Pump Type	Variable displacement axial piston (2 pumps)
Total Flow	~440 L/min (116 gal/min)
Operating Pressure	350 bar (5,075 psi)
Auxiliary Hydraulics	2 circuits, 220 L/min each
Quick Coupler Ready	Yes (optional/standard depending on config)

🖐️ Work Equipment & Attachments

The 323D2 is highly versatile with multiple attachment options:

Attachment	Application
🔹 Standard Bucket	General digging
🔹 Grading Bucket	Fine grading, leveling
🔹 Thumb	Grabbing, demolition
🔹 Hydraulic Breaker	Rock breaking, demolition
🔹 Hydraulic Shear	Metal cutting, scrap
🔹 Compactor Wheel	Soil compaction
🔹 Auger	Drilling
🔹 Ripper (single shank)	Hard ground breaking
🔹 Grapple	Material handling
🔹 Tiltrotator	Multi-angle work (optional)

💺 Operator Comfort & Cab

Feature	Detail
Cab Type	ROPS/FOPS certified, pressurized & filtered
Seat	Air-suspended, heated, fully adjustable
Climate Control	Automatic A/C & heating
Display	7" (178 mm) color LCD touchscreen monitor
Controls	Electronic joystick with programmable buttons
Noise Level	~70 dB(A) (very quiet for its class)
Visibility	Excellent all-around visibility, large glass area
Bluetooth/USB	Yes
Camera System	Optional rear-view & work area cameras

📡 Technology & Smart Features

Technology	Description
🖥️ Cat Product Link™	Telematics — remote monitoring of location, fuel, hours, diagnostics
📊 Cat GRADE (ready)	3D grade control system compatible
🔧 Cat Payload	Real-time bucket payload weighing
🛡️ Security	CAT Security (anti-theft, immobilizer)
📈 Eco Mode	Reduces engine RPM when full power not needed — saves fuel
🔄 Auto Engine Idle Shutdown	Engine shuts off after 5 min idle
🤖 Semi-Automatic Operation	Optional (auto-dig, return-to-dig, swing assist)

💪 Undercarriage Options

Option	Width	Application
Standard Track Shoes	600 mm (24 in)	General use
Wide Track Shoes	750 mm (30 in)	Soft ground, mud
Triple Grouser	600 mm	Rocky/abrasive terrain
Long Reach Undercarriage	600 mm	Extended reach work

📊 Performance Comparison (vs Competitors)

Feature	Cat 323D2	Komatsu PC228	Volvo EC230	JCB JS220
Power	129 hp	131 hp	129 hp	129 hp
Weight	~23,500 kg	~22,800 kg	~23,100 kg	~22,000 kg
Dig Depth	6.7 m	6.9 m	6.8 m	6.6 m
Fuel Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Tech/Telematics	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐
Resale Value	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐

✅ Advantages (Why Choose 323D2?)

✅ Advantage	📌 Explanation
🏆 Fuel Efficiency	Among the best in its class (~15–20% less fuel vs older D1 models)
🛋️ Operator Comfort	Industry-leading cab with low noise & vibration
📡 Connectivity	Best-in-class telematics with Product Link
🔧 Low Maintenance	Longer service intervals, easy access points
💰 Resale Value	Cat holds value better than most competitors
🌍 Dealer Network	Largest global dealer/parts network
🛡️ Durability	Built for heavy-duty, long-life operation

📋 Typical Applications

🏗️ Application	🔧 Use Case
Road Construction	Excavation, trenching, grading
Utilities	Pipeline laying, cable trenches
Landscaping	Grading, digging, material handling
Demolition	With breaker/shear attachment
Mining (light)	Small-scale excavation
Agriculture	Land clearing, drainage
Residential	Foundation work, utility installation

🔢 Model Variants

Model	Difference
323D2	Standard boom + stick
323D2 L	Long reach (deeper digging, ~7.5 m depth)
323D2 GC	General Construction (different undercarriage)
323D2 MH	Material Handler (longer boom for waste/scrap)

💵 Approximate Pricing (2024)

Condition	Price Range (USD)
New	$160,000 – $195,000
Used (2,000–4,000 hrs)	$100,000 – $140,000
Used (4,000–8,000 hrs)	$75,000 – $110,000

(Prices vary by region, configuration, and dealer)

🎯 Summary

Category	Rating
🔧 Power & Performance	⭐⭐⭐⭐⭐
⛽ Fuel Efficiency	⭐⭐⭐⭐⭐
💺 Operator Comfort	⭐⭐⭐⭐⭐
📡 Technology	⭐⭐⭐⭐⭐
🔧 Reliability	⭐⭐⭐⭐⭐
💰 Value for Money	⭐⭐⭐⭐

🏆 Bottom Line:
The Cat 323D2 is one of the best mid-size excavators in the world — offering a perfect balance of power, efficiency, comfort, and technology. It's the go-to machine for contractors who want reliability, low operating costs, and strong resale value. 🏗️💪
