Used Caterpillar 950GCLoader

Reading: 17

📋 Overview

The Cat 950GC is a mid-size wheel loader belonging to Caterpillar's Next Generation G-Series lineup. It was introduced around 2017–2018 to replace the older 950G (F-Series) model. The "GC" designation indicates it is part of the Generation C product family. It is designed for general construction, quarrying, aggregate, mining, and landfill applications.

🔧 Engine & Power

Specification	Details
Engine Model	Cat C7.1 ACERT®
Emission Standard	U.S. EPA Tier 4 Final / EU Stage IV
Net Power	227 hp (169 kW) @ 1,800 rpm
Displacement	7.1 L (433 in³)
Fuel System	Common Rail Direct Injection (CRDI)
Aftertreatment	Diesel Particulate Filter (DPF) + Diesel Exhaust Fluid (DEF/AdBlue)

✅ No need for engine derating in most applications — full power is available at altitude up to 3,000 m (9,843 ft).

⚖️ Operating Specifications

Specification	Metric	Imperial
Operating Weight	~20,500 – 21,000 kg	~45,200 – 46,300 lb
Rated Payload	~6,900 kg	~15,200 lb
Bucket Capacity (SAE 2:1)	2.5 – 4.0 m³	3.3 – 5.2 yd³
Max Breakout Force	~130 kN	~29,200 lbf
Max Lift Height (to pin)	~3,200 mm	~126 in
Max Dump Height	~3,100 mm	~122 in
Dump Reach	~1,100 mm	~43 in
Travel Speed (max)	~39 km/h	~24 mph
Gradeability	35%	35%
Turning Radius (outside)	~7,000 mm	~276 in
Fuel Tank Capacity	~380 L	~100 gal

🛞 Transmission & Drivetrain

Feature	Details
Transmission	Cat Advanced Productivity Electronic Control Strategy (APECS) — fully automatic powershift
Gears	4 forward / 4 reverse
Axles	Heavy-duty oscillating axles
Tires	23.5R25 (standard)
Differential Lock	Available rear axle differential lock
Traction Control	Electronic traction control system

🖥️ Technology & Features

🧠 Cat Product Link™

Remote machine monitoring via VisionLink® telematics
Real-time data: location, fuel consumption, engine hours, diagnostics, idle time
Enables fleet management and predictive maintenance

📊 Cat Payload with Weigh Scale (Optional)

On-the-go payload weighing
Accuracy within ±1%
Helps optimize loading, reduce overloading, and improve fuel efficiency

🎛️ Loader Electronic Control System (LECS)

Automatically optimizes engine speed and hydraulic flow for maximum fuel efficiency
Smooth, consistent bucket filling

💺 Operator Comfort — G-Series Cab

Feature	Description
ROPS/FOPS	Rollover & Falling Object Protective Structure (certified)
Air Suspension Seat	Fully adjustable with armrests
Climate Control	Automatic HVAC with air filtration
Display	7" (178 mm) touchscreen monitor with rear-view camera
Noise Level	~74 dB(A) — one of the quietest in class
Controls	Ergonomic lever controls, adjustable steering column
Lighting	LED work lights (front, rear, roof)

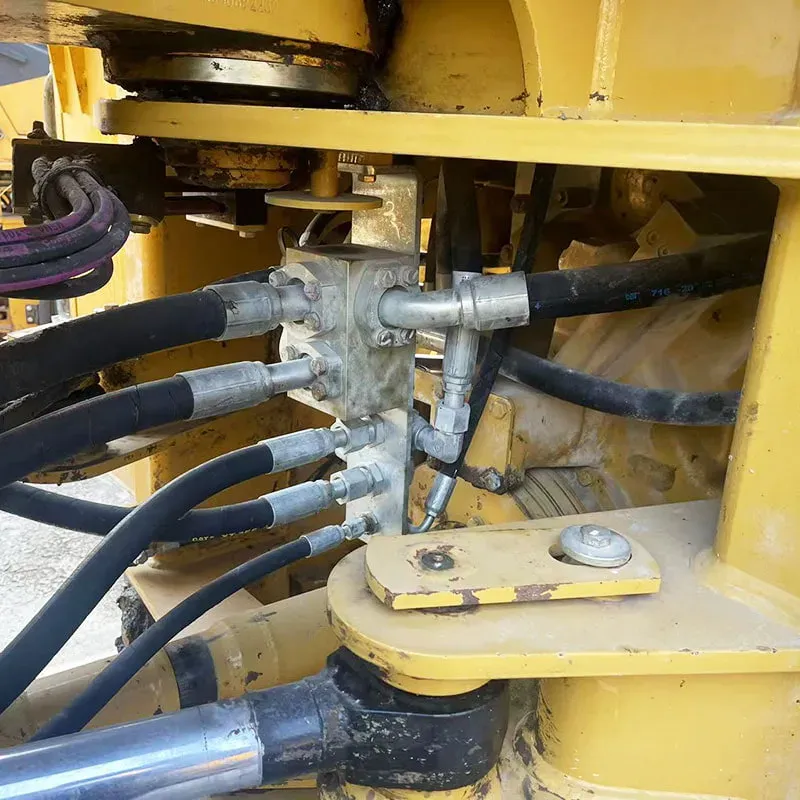

🔧 Hydraulic System

Specification	Details
System Pressure	350 bar (5,076 psi)
Flow Rate	~350 L/min (92 gpm)
Lift Cylinders	Large bore for fast cycle times
Tilt Cylinders	Optimized for fast dump and return
Auxiliary Hydraulics	Available for attachments (grapple, fork, snow blade, etc.)
Quick Couplers	Cat QA coupler compatible

🏗️ Typical Applications

Application	Description
🪨 Quarrying & Aggregate	Loading, stockpiling, truck loading
🏗️ General Construction	Earthmoving, road building, site prep
⛏️ Mining	Truck loading, material handling
🗑️ Landfill & Recycling	Waste handling, composting
❄️ Snow & Ice	With snow blade attachment
🪵 Logging & Forestry	With grapple attachment

🆚 Comparison: 950GC vs 950G (Predecessor)

Feature	950G (Old)	950GC (New G-Series)
Engine	Cat C9.3 ACERT	Cat C7.1 ACERT
Power	250 hp	227 hp
Emissions	Tier 3 / Stage IIIA	Tier 4 Final / Stage IV
Fuel Efficiency	Baseline	Up to 15–20% better
Payload	~7,000 kg	~6,900 kg
Cab	Older design	New G-Series cab (quieter, comfortable)
Technology	Basic	Product Link, LECS, payload
Service Intervals	Standard	Extended (up to 1,000 hrs)

💡 Even though the 950GC has slightly less peak horsepower, its fuel efficiency and productivity are significantly better due to the advanced electronic controls.

🔩 Service & Maintenance

Item	Interval
Engine Oil Change	500 hours
Hydraulic Oil Change	2,000 hours
Transmission Oil Change	2,000 hours
Final Drive Oil Change	4,000 hours
Air Filter	500 hours
Fuel Filter / Water Separator	500 hours
DEF	Refilled as needed (~5–8% of diesel consumption)

✅ Cat offers Scheduled Oil Sampling (S·O·S™) for oil analysis to extend service intervals.

💵 Approximate Pricing (2024 Estimate)

Configuration	Approximate Price (USD)
950GC Base	$280,000 – $320,000
950GC with Payload	$310,000 – $350,000
950GC with Heat/AC Package	$330,000 – $370,000

(Prices vary by region, dealer, and optional attachments)

✅ Key Advantages Summary

✅ Advantage	📌 Detail
🔥 Fuel Efficiency	Up to 20% less fuel than predecessor
🧠 Smart Technology	Product Link, payload, LECS
💺 Operator Comfort	Best-in-class quiet, spacious G-Series cab
🔧 Lower Maintenance	Extended service intervals, easy access
🌍 Emissions Compliant	Tier 4 Final / Stage IV — future-proof
💰 Lower Total Cost of Ownership	Fuel savings + less downtime
🛡️ Reliability	Proven Cat C7.1 engine, robust drivetrain

🎯 Bottom Line

The Cat 950GC is a highly productive, fuel-efficient, and technologically advanced mid-size wheel loader. It represents a significant step up from the older 950G, offering lower operating costs, better operator comfort, and full telematics integration — making it ideal for contractors and fleet owners looking to maximize productivity while minimizing cost per ton.

Would you like more details on any specific aspect — such as attachments, comparisons with competitors (Komatsu WA380, Volvo L120H), or operating cost analysis? 🚜
