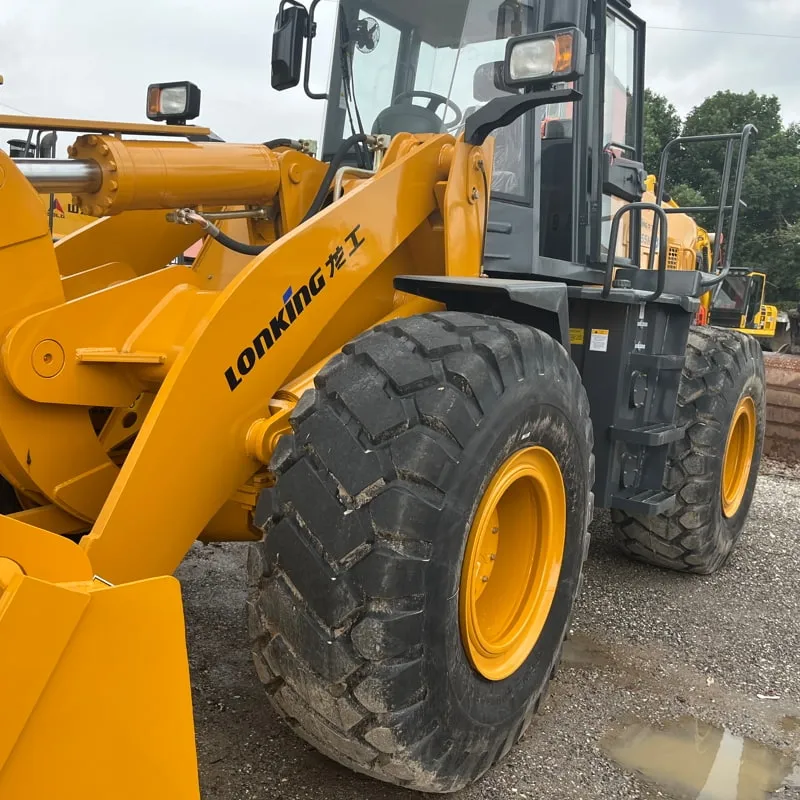

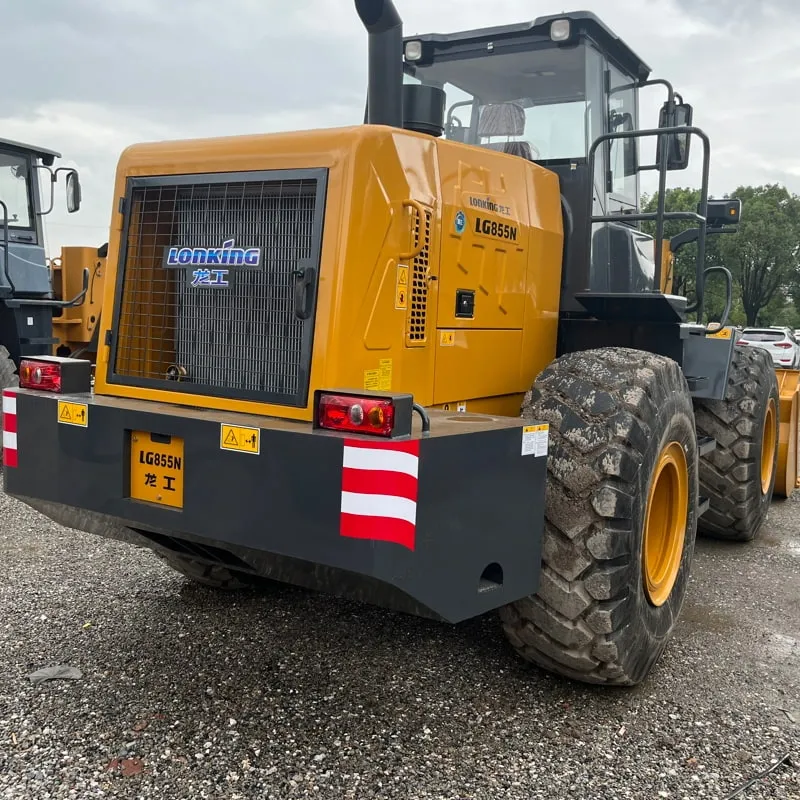

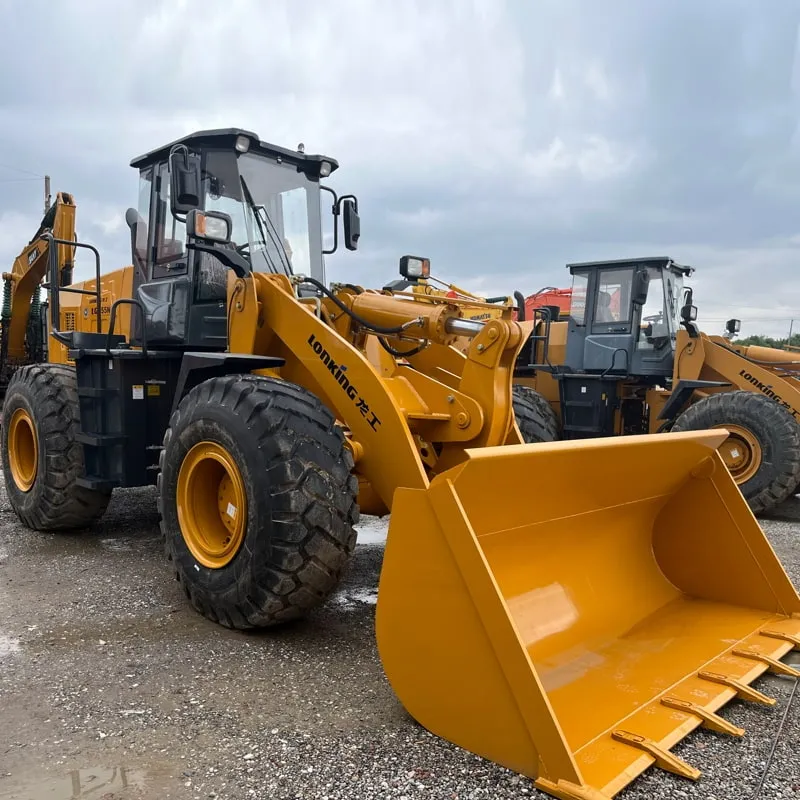

Used Lonking 855NLoader

Reading: 9

📌 Overview

Item	Detail
Manufacturer	LonKing (Lingong Machinery Group / LGMG), Shandong, China
Model	855N (N = New Generation)
Class	5-Ton Wheel Loader
Application	Construction, mining, quarrying, logistics, municipal works
Market Position	Mid-range Chinese brand, competing with XCMG LW500FN, LiuGong CLG855N, SDLG L956F

The 855N is the upgraded/new generation version of the classic LonKing 855, featuring improved engine, transmission, cab comfort, and hydraulic system.

🔧 Key Technical Specifications

Parameter	Specification
Rated Bucket Capacity	3.0 m³ (3.5 m³ optional)
Operating Weight	~17,000 – 17,500 kg
Rated Load	5,000 kg (5 tons)
Max Dump Height	~3,200 – 3,300 mm
Max Dump Reach	~1,100 – 1,200 mm
Max Digging Depth	~130 – 150 mm
Max Tractive Force	~175 – 180 kN
Max Speed (Forward/Reverse)	~35 km/h / ~30 km/h
Gradeability	~30° (58%)
Turning Radius	~6,500 – 7,000 mm
Fuel Tank Capacity	~280 – 300 L

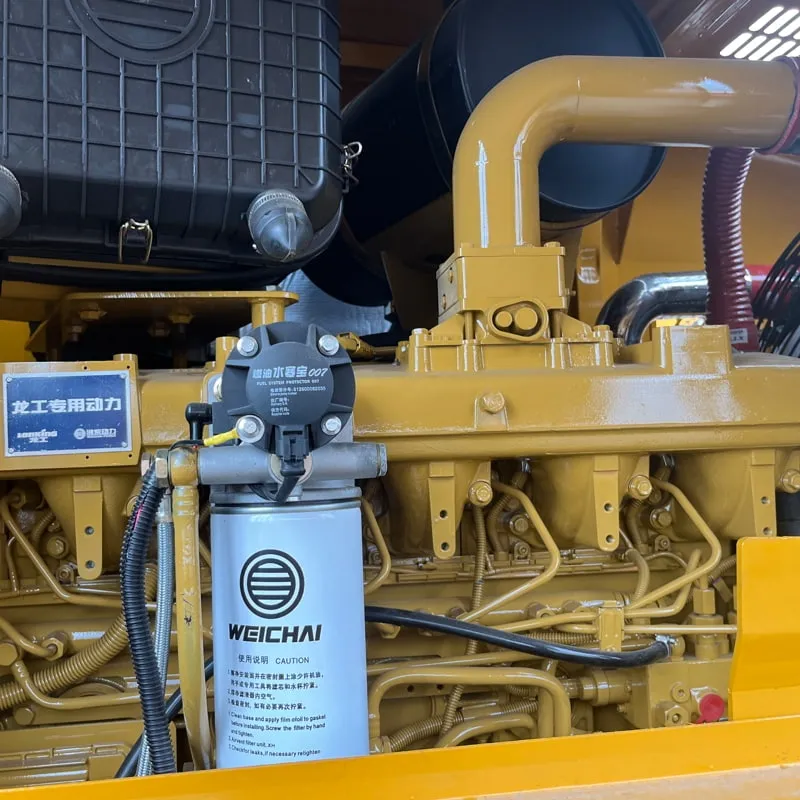

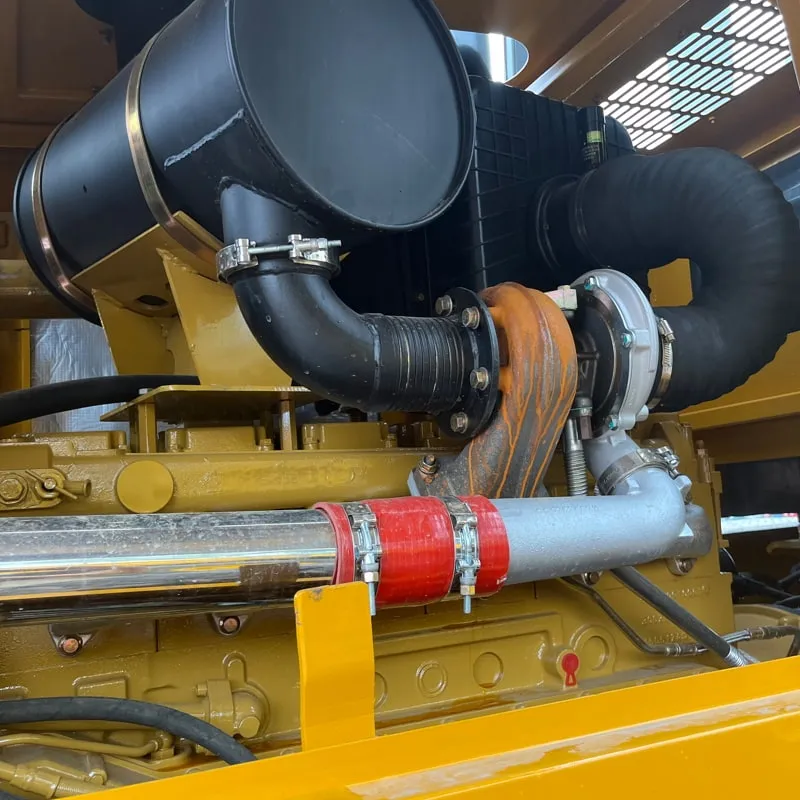

🛢️ Engine

Item	Detail
Engine Brand	Weichai (潍柴) WP10 / WP12 series (most common)
Engine Model	WP10.336 or WP12.375 (varies by market)
Type	Turbocharged, Intercooled, 6-cylinder Diesel
Displacement	9.7 – 12 L
Power Output	162 – 175 kW (217 – 235 HP) @ 1,800–2,000 rpm
Emission Standard	China III / Tier 3 (some markets: China IV / Tier 4 Final)
Features	Electronic fuel injection, low fuel consumption, easy maintenance

💡 Some export markets may also offer Yuchai (玉柴) or Cummins engine options.

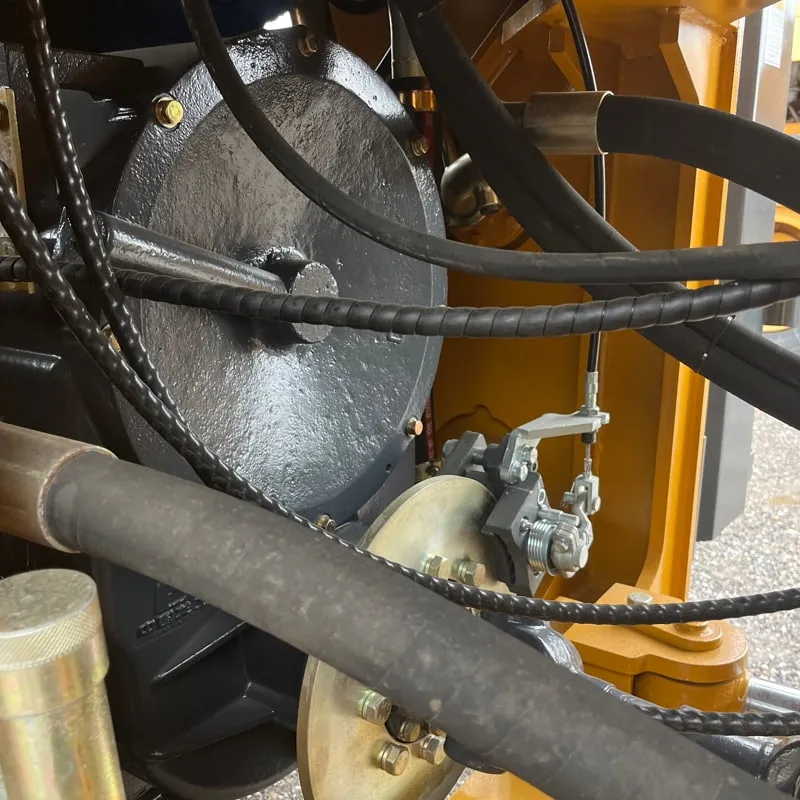

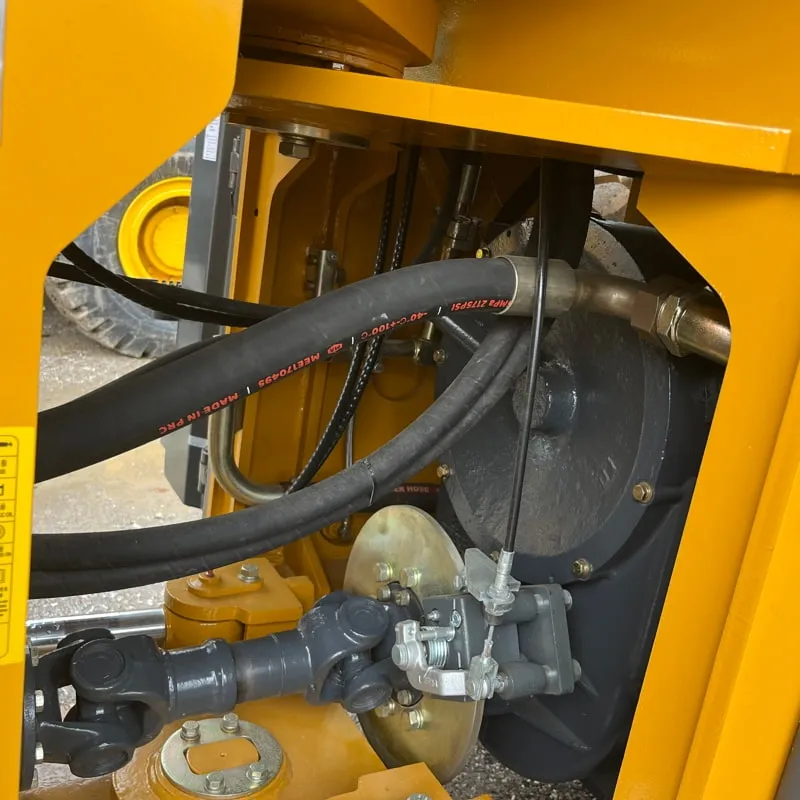

& Transmission & Drivetrain

Item	Detail
Transmission Type	Power Shift (Full Power Shift)
Torque Converter	Single-stage, 3-element
Gears	4 Forward / 4 Reverse
Axle	Heavy-duty planetary reduction axle
Differential Lock	✅ Self-locking differential (optional)
Tires	23.5-25 (16-pry) E-3/L-3 pattern tires
Brake System	Wet disc brakes, air-over-hydraulic

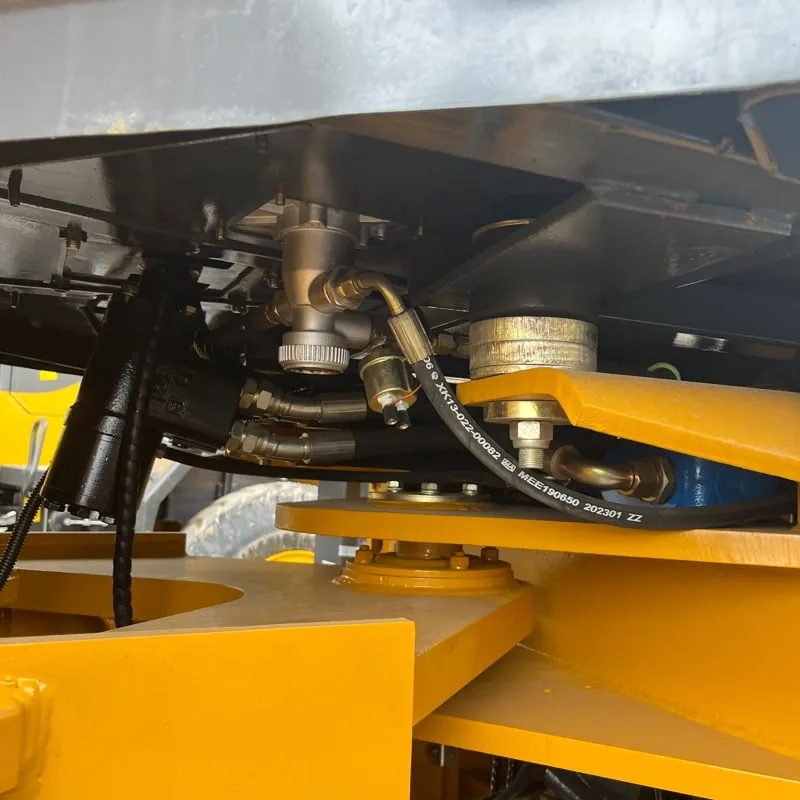

🏗️ Hydraulic System

Item	Detail
Pump Type	Load-Sensing (LS) hydraulic system
Pump Flow	~210 – 230 L/min
System Pressure	~21 – 23 MPa
Lift Time (Full Load)	~5.5 – 6.5 sec
Lower Time	~2.5 – 3.0 sec
Steering	Load-sensing hydraulic steering (articulated)
Hitch	Z-bar linkage with auto-leveling (optional)

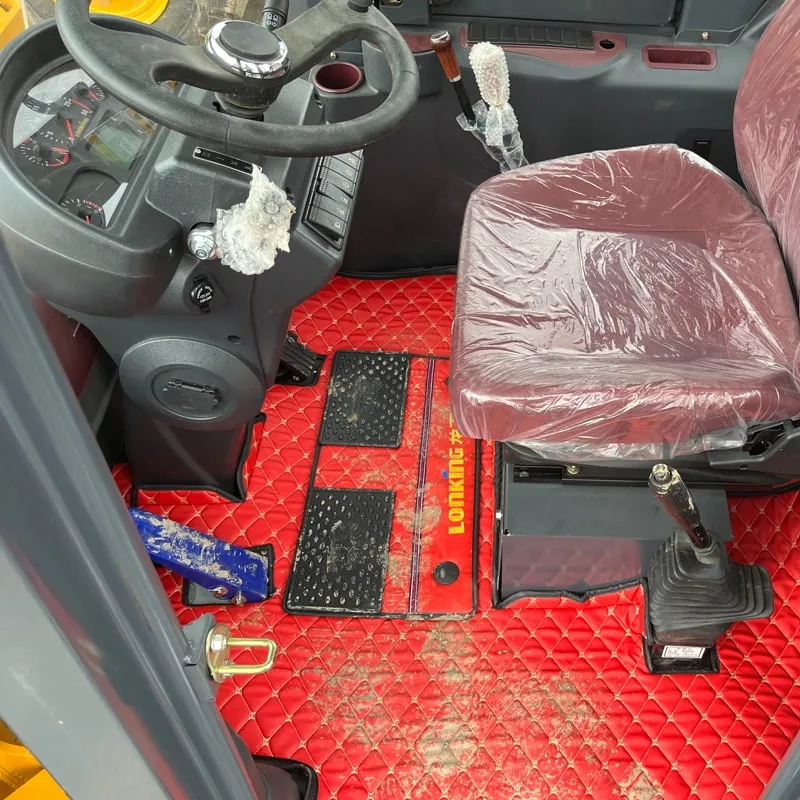

🛋️ Cab & Operator Comfort

Feature	Detail
Cab Type	ROPS/FOPS certified, fully enclosed
Seat	Air-suspension seat with armrest
Control	Pilot joystick control (single lever for boom/bucket + steering)
Climate	Air conditioning + heater
Display	LCD/digital instrument panel
Noise Level	≤ 78 dB(A)
Visibility	Large glass area, rear-view camera (optional)
Lighting	LED work lights (front + rear)
Others	USB charging port, cup holder, 12V/24V power outlet

🔑 Key Features & Highlights

#	Feature	Description
1	✅ New Generation Design	Updated exterior styling, improved cooling system
2	✅ Fuel Efficient	Weichai engine + LS hydraulic = ~15–20% fuel savings vs old model
3	✅ Easy Maintenance	Side-opening hood, centralized lubrication, ground-level service points
4	✅ Durable Structure	Reinforced bucket, heavy-duty rock guard, wear-resistant cutting edge
5	✅ Smart Monitoring	Engine fault diagnostics, hour meter, maintenance reminder
6	✅ Versatile Attachments	Compatible with bucket, fork, grapple, snow blade, breaker, etc.
7	✅ Anti-slip Differential	Improved traction in muddy/slippery conditions

🆚 Comparison with Competitors

Model	Rated Load	Engine Power	Bucket	Weight
LonKing 855N	5,000 kg	162–175 kW	3.0 m³	~17,200 kg
XCMG LW500FN	5,000 kg	162 kW	3.0 m³	~17,000 kg
LiuGong CLG855N	5,000 kg	162 kW	3.0 m³	~17,200 kg
SDLG L956F	5,000 kg	162 kW	3.0 m³	~17,000 kg
CAT 950 GC	5,140 kg	193 kW	3.1 m³	~20,800 kg
Komatsu WA470-8	5,000 kg	199 kW	3.0 m³	~20,000 kg

📌 The LonKing 855N offers excellent value for money, being ~30–40% cheaper than Caterpillar/Komatsu while delivering comparable performance.

🌍 Markets

Region	Presence
🇨🇳 China	Very strong — one of top domestic brands
🌏 Southeast Asia	High demand (Vietnam, Philippines, Indonesia, Thailand)
🌍 Africa	Growing fast (mining & construction)
🌎 South America	Brazil, Chile, Peru — strong in mining
🌏 Middle East	UAE, Saudi Arabia, Iran
🌏 Central Asia	Kazakhstan, Uzbekistan, Russia

💰 Approximate Pricing (2024 Estimate)

Market	Price Range (USD)
China	$45,000 – $55,000
Export (SE Asia/Africa)	$50,000 – $65,000
Export (S. America/Middle East)	$55,000 – $70,000

(Prices vary by configuration, engine option, and market)

✅ Pros & ❌ Cons

✅ Pros	❌ Cons
Great price-to-performance ratio	Brand prestige lower than CAT/Komatsu
Fuel efficient Weichai engine	Parts availability limited in some regions
Comfortable modern cab	Resale value lower than Japanese brands
Easy to maintain	After-sales network still developing globally
Strong in harsh conditions (mining)	Some quality consistency issues reported

📋 Summary

The LonKing (LGMG) 855N is a reliable, cost-effective 5-ton wheel loader ideal for construction, mining, and material handling. With its Weichai engine, load-sensing hydraulics, modern comfortable cab, and competitive pricing, it's one of the best value Chinese wheel loaders in the market — perfect for buyers who want Caterpillar-level performance at a Chinese-brand price. 🚜💪
