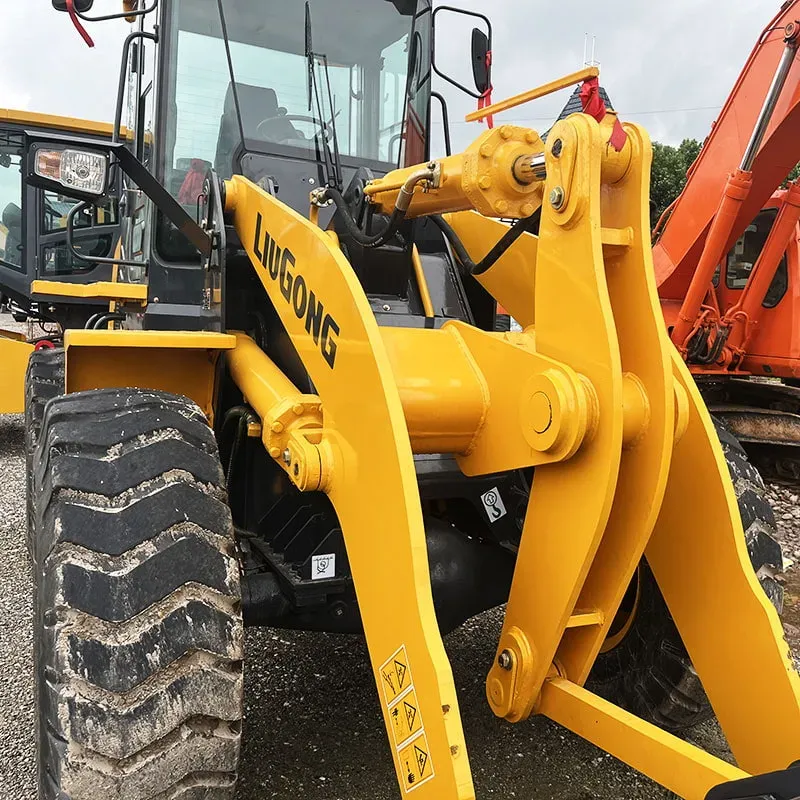

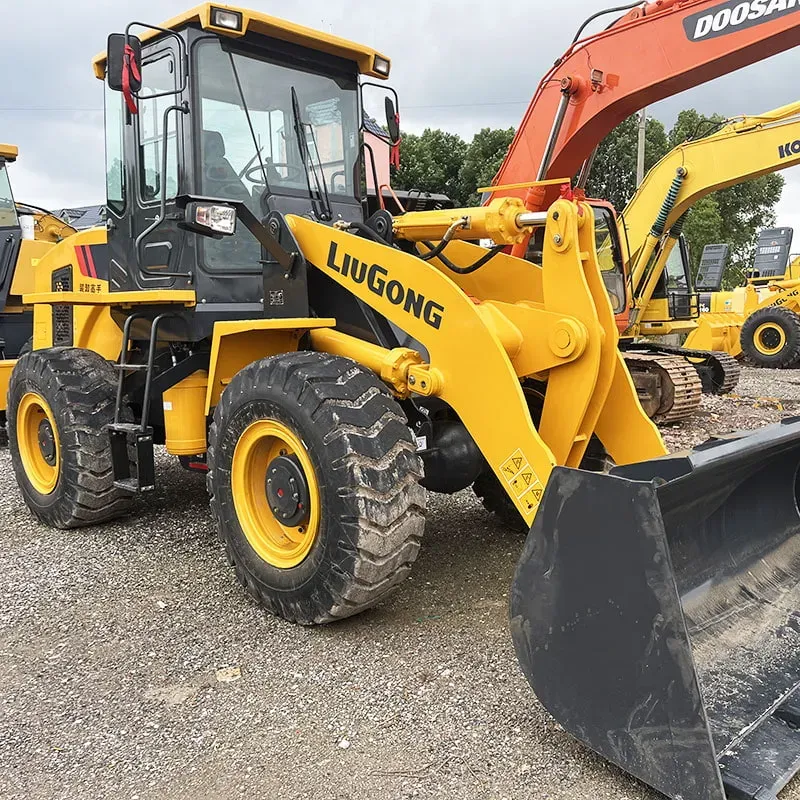

Used Liugong 835Loader

Reading: 27

🏢 Manufacturer Overview

Item	Detail
Manufacturer	Guangxi LiuGong Machinery Co., Ltd. (柳工)
Headquarters	Liuzhou, Guangxi, China
Founded	1958
Status	One of China's top 3 construction machinery makers (alongside XCMG & SANY)
Global Presence	Exported to 100+ countries, 20+ overseas subsidiaries

📋 Machine Overview

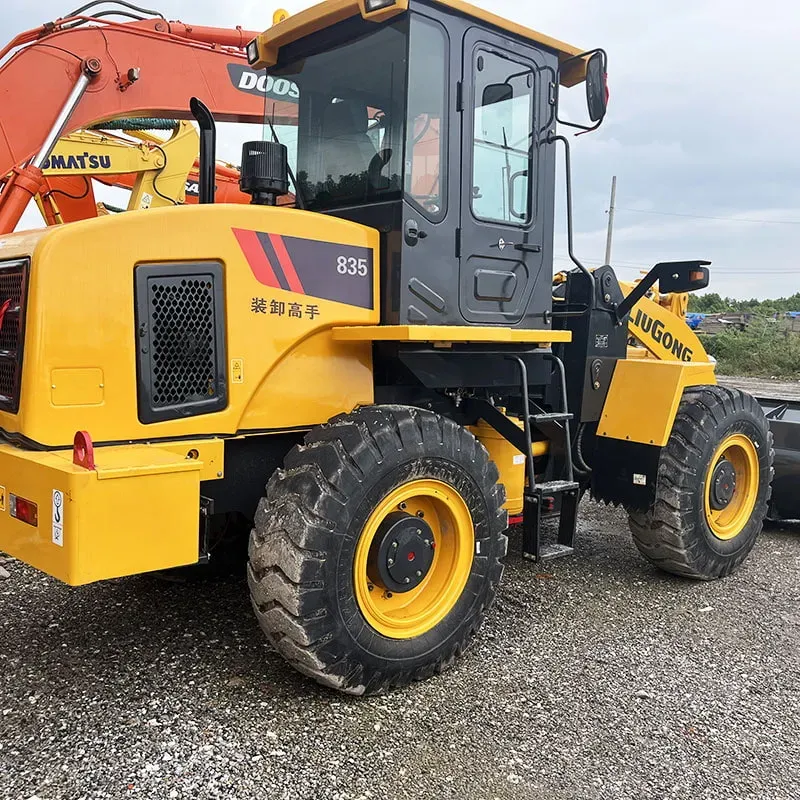

The CLG835 is a 3-ton (rated load) compact/medium wheel loader, positioned as a versatile, cost-effective machine for construction, mining, agriculture, and material handling. It replaces/competes with legacy models and sits between the smaller CLG836 and larger CLG856 in LiuGong's lineup.

Parameter	Specification
Model	CLG835 (also written as LG835 / ZL30E in some markets)
Rated Load	3,000 kg (3 tons)

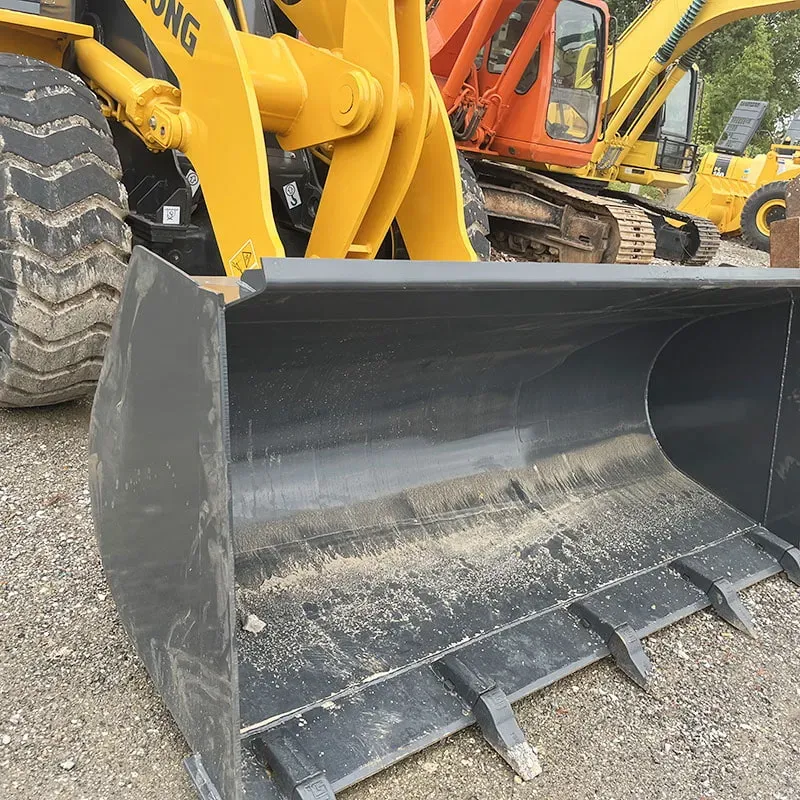

Bucket Capacity (Standard)	1.7 m³ (2.2 yd³)
Operating Weight	~10,500 – 11,000 kg
Overall Dimensions (L×W×H)	~7,200 × 2,800 × 3,200 mm
Wheelbase	~2,750 mm
Ground Clearance	~430 mm
Turning Radius (Outside)	~5,800 mm

🔧 Engine & Powertrain

Component	Specification
Engine Brand	Weichai (潍柴) WP6G125E22 or LiuGong proprietary
Engine Type	4-cylinder, turbocharged, intercooled diesel
Displacement	~6.0 L
Rated Power	92 kW (125 HP) @ 2,200 rpm
Emission Standard	China III / Stage IIIA (some markets: Tier 4 Final / Stage IV)
Transmission	Power Shift (automatic), 2F/2R
Torque Converter	Single-stage, high-efficiency
Drive System	4×4 articulated
Max Travel Speed	~35 km/h (forward) / ~13 km/h (reverse)
Gradeability	≥30° (58%)

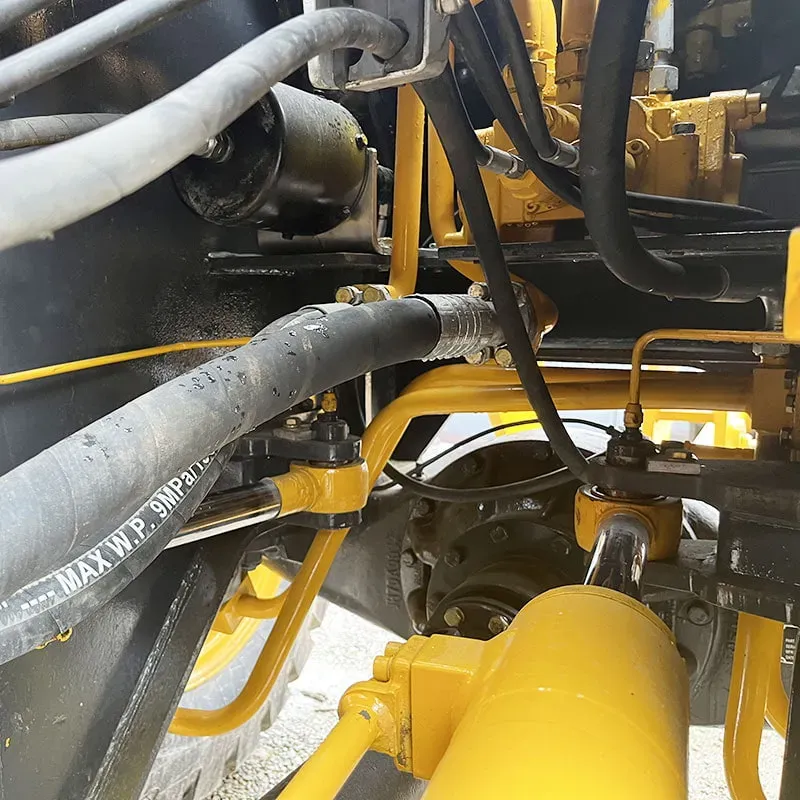

💪 Hydraulic System & Performance

Parameter	Specification
Pump Type	Gear pump / Variable displacement (market dependent)
System Pressure	16 – 18 MPa
Lift Capacity (Full Height)	~3,000 kg
Bucket Breakout Force	~110 – 115 kN
Lift Time (Empty → Full)	≤6.0 sec
Dump Time (Full → Empty)	≤1.0 sec
Lift Height (Hinge Pin)	~3,100 mm
Dump Reach	~1,000 mm
Tilt Angle	~45°

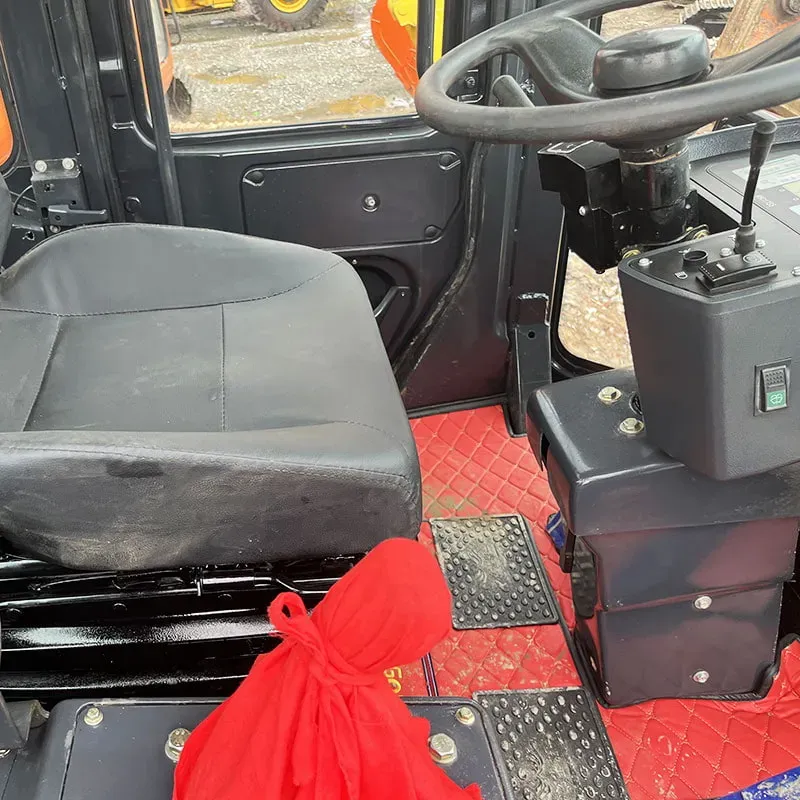

🪑 Cab & Operator Comfort

Feature	Detail
Cab Type	ROPS/FOPS certified, fully enclosed
Air Conditioning	✅ Standard
Seat	Suspended, adjustable, with armrest
Control	Joystick or lever-type (market dependent)
Instrument Panel	LCD display with engine diagnostics
Sound Level	≤78 dB(A)
Visibility	Large front/rear windows, rear-view camera (optional)
Lighting	LED work lights (front & rear)

🛞 Tires & Undercarriage

Item	Specification

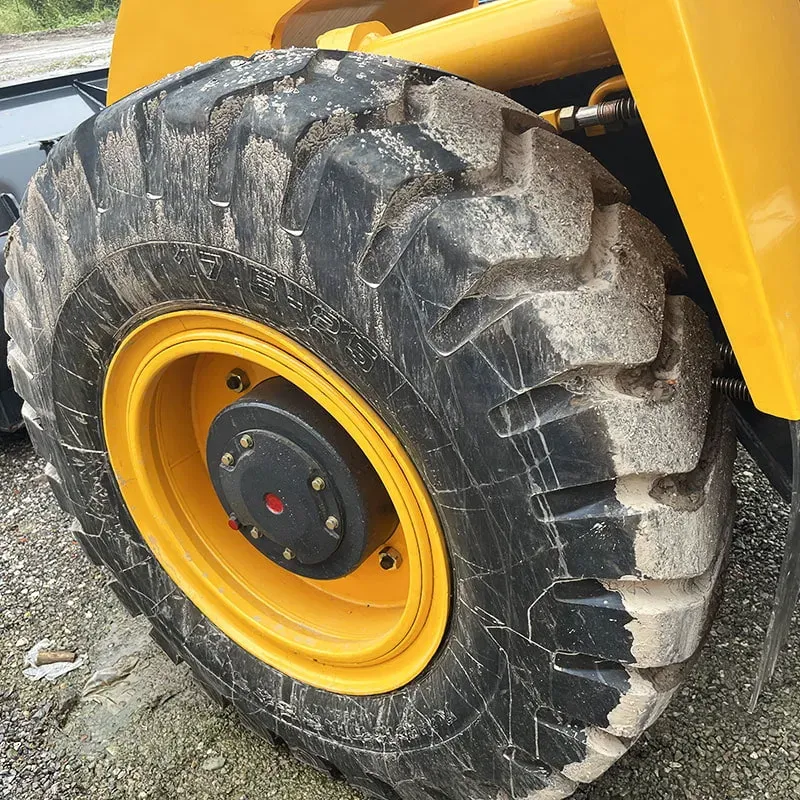

Tire Size	17.5-25 (E-3/L-3 pattern)
Articulation Angle	±35° (±40° optional)
Axle Type	Oscillating front & rear
Brake System	Wet disc brakes, oil-immersed

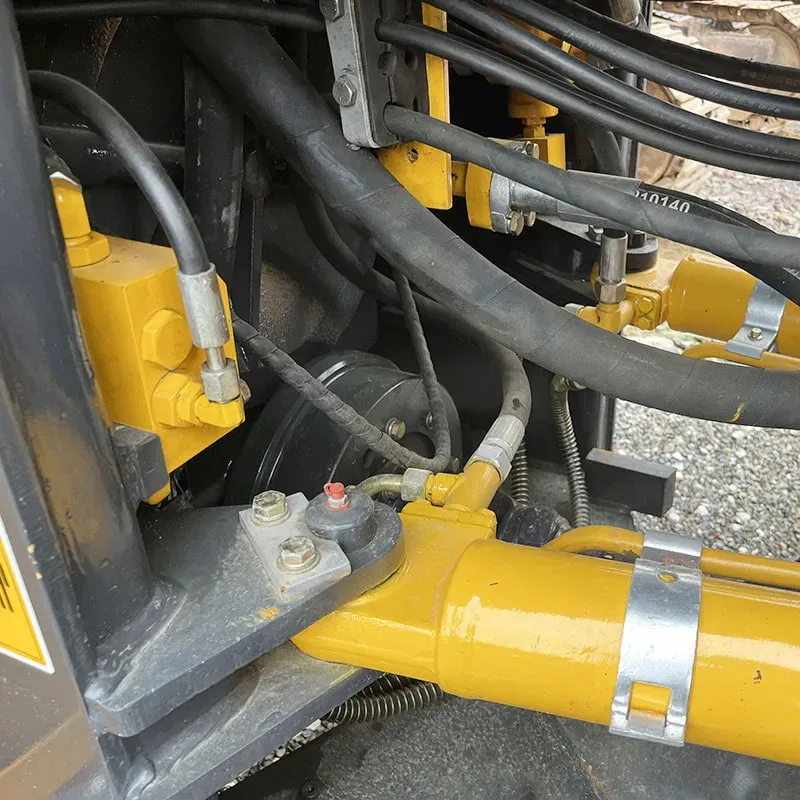

Steering	Articulated, hydrostatic

🔄 Attachments & Versatility

The CLG835 is highly versatile with quick-coupler capability:

Attachment	Application
🪣 Standard Bucket (1.7 m³)	General loading
🧹 Snow Blade / Snow Push	Winter maintenance
🪵 Log Grapple / Fork	Log handling, pallet forks
🔨 Hydraulic Breaker	Demolition, rock breaking
🔩 Auger	Post hole drilling
🧹 Sweeper Broom	Road cleaning
🪨 Rock Bucket (heavy-duty)	Quarry & mining
🏗️ Pallet Forks	Warehouse, agriculture

⭐ Key Features & Advantages

#	Feature	Benefit
1	Weichai Engine	Proven reliability, easy parts availability, fuel-efficient
2	Power Shift Transmission	Smooth operation, reduced operator fatigue
3	Compact Design	Excellent maneuverability in tight spaces
4	Low Maintenance Cost	LiuGong's strength — affordable spare parts globally
5	Strong Lift Performance	110+ kN breakout force for its class
6	Durable Structure	Reinforced frame & articulation joint for heavy-duty use
7	Cost-Effective	15–30% cheaper than CAT/Komatsu equivalents

📊 Comparison with Competitors

Model	Rated Load	Bucket	Power	Weight	Price Range (USD)
LiuGong CLG835	3,000 kg	1.7 m³	125 HP	~10,800 kg	$35,000 – $48,000
XCMG LW300KN	3,000 kg	1.8 m³	125 HP	~10,900 kg	$38,000 – $50,000
SEM636B	3,000 kg	1.8 m³	125 HP	~10,500 kg	$36,000 – $48,000
SDLG L936	3,000 kg	1.7 m³	120 HP	~10,800 kg	$34,000 – $45,000
CAT 930 (used)	3,000 kg	1.8 m³	130 HP	~11,500 kg	$55,000 – $80,000

💡 The CLG835 offers near-CAT performance at half the price.

🌍 Typical Applications

Industry	Use Case
🏗️ Construction	Loading trucks, stockpiling, site prep
⛏️ Mining	Loading haul trucks, quarry work
🌾 Agriculture	Grain/silage handling, manure management
🏭 Industry	Warehouse loading, recycling
🛣️ Municipal	Snow removal, road maintenance
🌳 Forestry	Log loading with grapple

🛠️ Maintenance & Service

Item	Interval
Engine Oil Change	250 – 500 hours
Hydraulic Oil Change	2,000 hours
Transmission Oil Change	2,000 hours
Fuel Filter	250 hours
Air Filter	500 hours
Grease Points	Every 8 hours

LiuGong has 500+ service centers worldwide and parts are widely available — a major advantage over many Chinese brands.

✅ Summary

Category	Rating
💰 Value for Money	⭐⭐⭐⭐⭐ (Excellent)
💪 Performance	⭐⭐⭐⭐ (Very Good for class)
🔧 Reliability	⭐⭐⭐⭐ (Weichai engine is proven)
🪑 Comfort	⭐⭐⭐⭐ (Good cab, AC standard)
🌍 After-Sales	⭐⭐⭐⭐ (Strong global network)
📈 Resale Value	⭐⭐⭐⭐ (Good in developing markets)

Bottom Line: The LiuGong CLG835 is one of the best-selling 3-ton wheel loaders globally — offering a perfect balance of performance, durability, and affordability. It's the go-to choice for contractors in Southeast Asia, Africa, South America, Central Asia, and the Middle East who want reliable equipment without the premium price of Japanese/European brands. 🚜💪
