Used Sdlg L956FLoader

Reading: 45

🏭 Overview

Item	Details
Manufacturer	SDLG (Shandong Lingong Construction Machinery Co., Ltd.) — part of Volvo Group
Model	L956F
Series	F-Series (New Generation)
Class	5-Ton Wheel Loader
Application	Mining, construction, quarrying, bulk material handling, ports, general earthmoving

The L956F is one of SDLG's flagship 5-ton wheel loaders, designed for high productivity and durability in demanding environments. It combines a powerful Weichai engine with SDLG's proprietary drivetrain technology.

& Key Technical Specifications

Parameter	Specification
Rated Bucket Capacity	3.0 m³ (standard) / up to 3.6 m³ (high-dump option)
Rated Payload	5,000 kg (5 tons)
Operating Weight	~17,000 – 17,800 kg
Max Breakout Force (Bucket)	~175 – 185 kN
Max Tractive Force	~170 – 180 kN
Dump Height (at full raise)	~3,100 – 3,250 mm
Dump Reach (at full raise)	~1,100 – 1,200 mm
Ground Clearance	~470 mm
Max Travel Speed	~36 – 40 km/h
Gradeability	30° (~58%)
Turning Radius (Outside)	~6,800 – 7,100 mm
Fuel Tank Capacity	~300 – 350 L
Hydraulic Oil Tank	~180 – 200 L

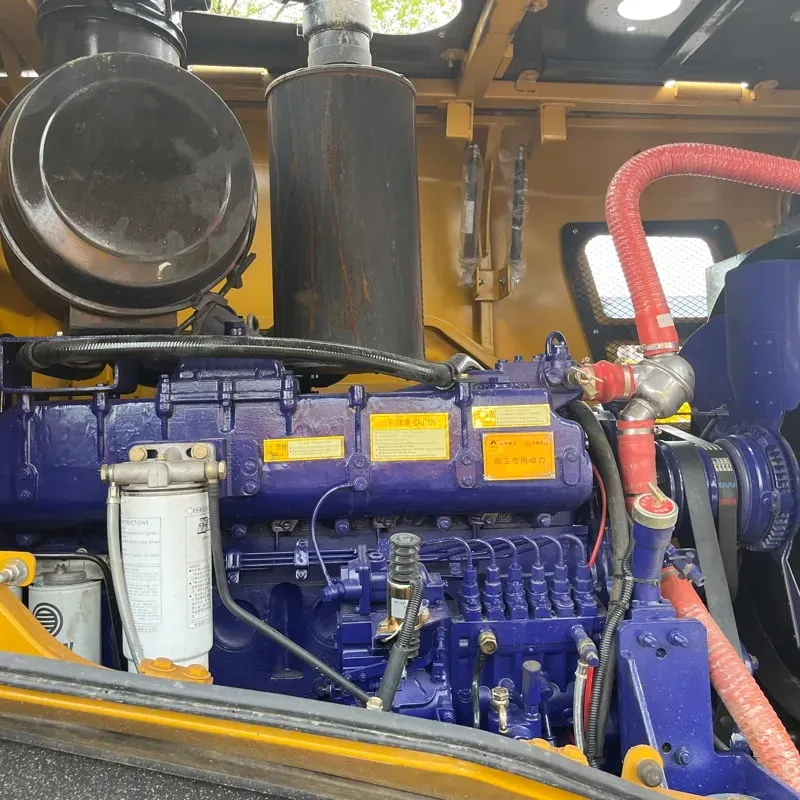

🔧 Engine

Item	Details
Engine Model	Weichai WP10G220E31 (or WD10G220E31)
Type	6-cylinder, turbocharged, aftercooled diesel
Displacement	9.726 L
Rated Power	162 kW (220 HP) @ 2,000 rpm
Max Torque	~850 N·m @ 1,400–1,600 rpm
Emission Standard	China III / Tier 3 (some markets: Stage IIIB / Tier 4i)
Fuel Consumption	~28 – 32 L/h (varies by working condition)

✅ The Weichai engine is known for reliability, strong low-end torque, and easy maintenance — widely used in Chinese construction machinery.

🔩 Drivetrain & Transmission

Component	Details
Transmission	SDLG Power-Shift Transmission (4F/4R)
Shift Mode	Fully automatic power shift — smooth, no clutch needed
Drive Axle	SDLG Heavy-Duty Drive Axle (planetary reduction)
Steering	Articulated frame steering with hydraulic steering
Brakes	Wet disc brakes (sealed, oil-cooled) — maintenance-free
Tires	23.5-25 (E-3/L-3 pattern) — 16-ply rated

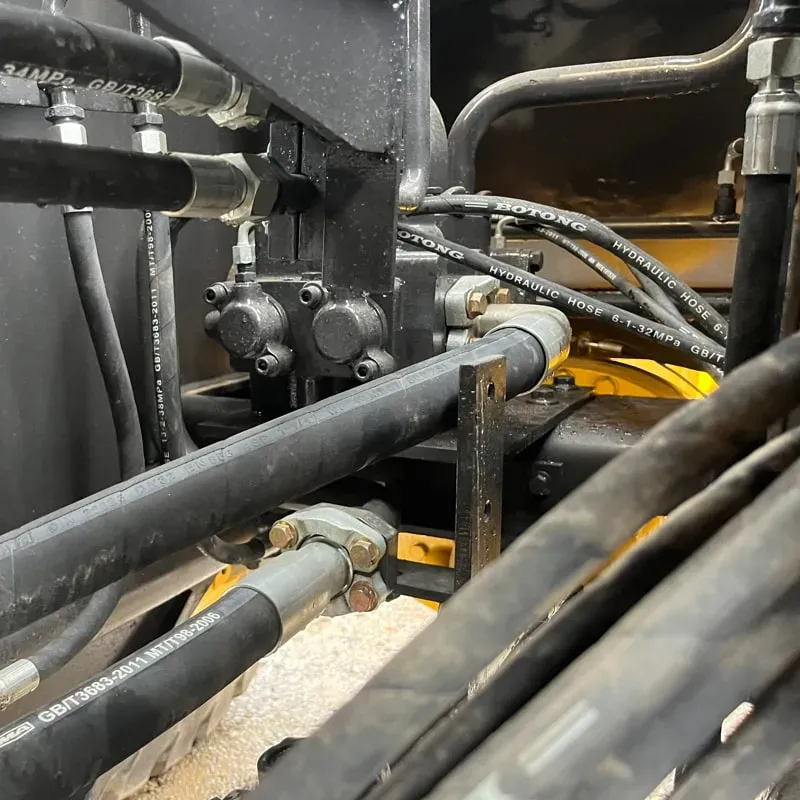

🪣 Hydraulic System

Parameter	Details
Pump Type	Gear pump / Load-sensing hydraulic system
System Pressure	21 MPa (3,050 psi)
Flow Rate	~280 – 320 L/min
Lift Time (Full raise)	~5.5 – 6.5 seconds
Lower Time (Full dump)	~2.0 – 2.5 seconds
Steering Cycle Time	~3.0 – 3.5 seconds
Work Mode	Load-sensing + Priority flow control

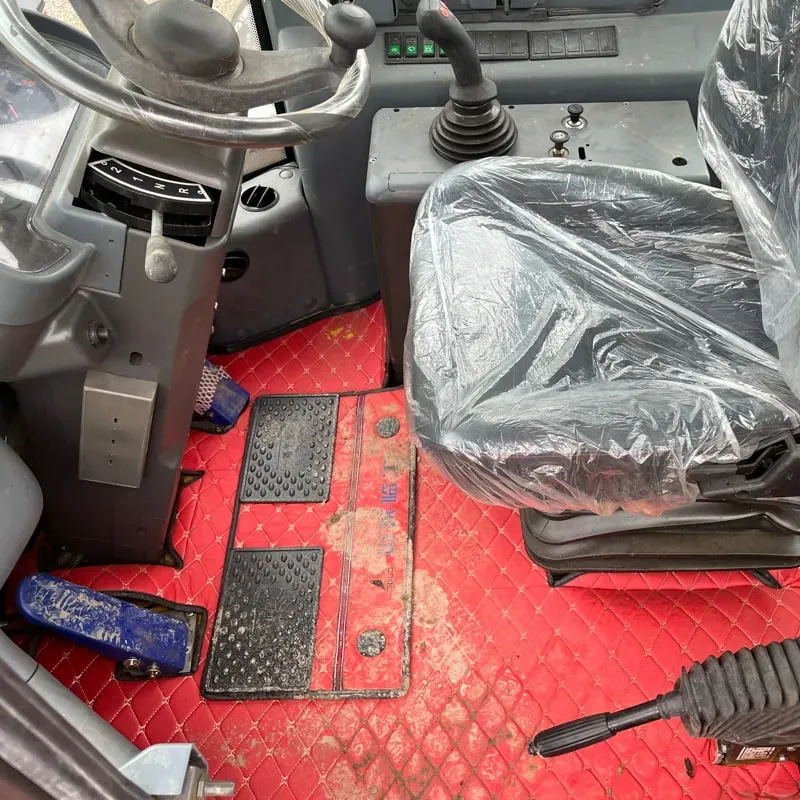

🖥️ Cab & Operator Comfort

Feature	Details
Cab Type	ROPS/FOPS certified, fully enclosed, pressurized
Seat	Air-suspension seat with armrest, adjustable
Air Conditioning	Full AC with heating
Display	LCD color monitor with machine diagnostics
Control	Joystick or lever controls (optional)
Noise Level	≤ 75 dB(A) (relatively quiet for the class)
Visibility	Large windshield, excellent all-around visibility
Features	Cup holder, USB charging, radio, rear-view camera (optional)

🛡️ Durability & Maintenance

Feature	Details
Frame	Heavy-duty articulated frame with high-strength steel
Bucket	Reinforced with side cutters & teeth (standard)
Service Intervals	Engine oil: 500h / Hydraulic oil: 1,000h / Fuel filter: 500h
Daily Check Points	Easy ground-level access for daily checks
Axle Oil	Sealed — long life, minimal maintenance
Warranty	Typically 12 months / 2,000 hours (varies by market)

📊 Performance Summary

Metric	Value
Cycle Time (loading)	~12 – 16 seconds
Productivity (bulk material)	~150 – 200 m³/h
Fuel Efficiency	~18 – 22 L/m³ (varies by material)
Lifespan (frame)	15,000 – 20,000+ hours
Resale Value	Good (SDLG brand has strong presence in Asia, Africa, Middle East, South America)

🌍 Market & Competition

Competitor	Model
XCMG	LW500FN / LW500KV
LiuGong (Dressta)	856H / 856H+
SEM	656D
CAT (Shandong SEM)	950 GC
Volvo	L50H (Volvo Group sibling)

💡 The L956F competes directly with XCMG's LW500FN and LiuGong's 856H in the 5-ton class. Its Weichai engine + SDLG drivetrain combo offers a strong price-to-performance ratio.

✅ Strengths (Pros)

✔️	Description
💪	Strong 220 HP engine with excellent low-end torque
🔄	Smooth power-shift transmission
🪑	Comfortable, modern cab with good AC
🔧	Easy maintenance, good parts availability
💰	Competitive pricing vs. XCMG/CAT/Volvo
🌡️	Reliable in hot climates (Middle East, Africa, SE Asia)

⚠️ Considerations (Cons)

❌	Description
📉	Brand perception slightly below CAT/Volvo in premium markets
🔩	Some users report hydraulic oil temperature can be high in continuous heavy work
🌍	Dealer/service network not as extensive as CAT in Western markets

🎯 Ideal Applications

Application	Suitability
🪨 Quarrying & Mining	⭐⭐⭐⭐⭐
🏗️ General Construction	⭐⭐⭐⭐⭐
🚢 Port & Logistics	⭐⭐⭐⭐
🪵 Logging & Wood Handling	⭐⭐⭐⭐
🏜️ Aggregate Plants	⭐⭐⭐⭐⭐
❄️ Cold Climate	⭐⭐⭐ (need cold-weather package)

📌 Summary

The SDLG L956F is a well-rounded, high-performance 5-ton wheel loader that offers:

🔑 220 HP Weichai engine + SDLG power-shift drivetrain + 3.0 m³ bucket + comfortable cab at a highly competitive price point.

It is one of the best-selling 5-ton loaders in Asia, Africa, the Middle East, and South America, and is increasingly gaining traction in other global markets. For buyers seeking strong value for money with solid reliability, the L956F is an excellent choice.
