📌 1. Overview

The Cat 950GC is a mid-size wheel loader manufactured by Caterpillar Inc. It is part of the GC Series (Generation C), which represents Caterpillar's next-generation lineup offering improved fuel efficiency, operator comfort, and advanced technology. The 950GC is designed for general construction, aggregates, mining, and material handling applications.

Category	Detail
Manufacturer	Caterpillar Inc.
Series	GC (Generation C) Series
Machine Class	Mid-Size Wheel Loader
Production	Ongoing (succeeded the 950G)
Primary Use	Loading, hauling, digging, grading

🔧 2. Engine & Powertrain

Specification	Detail
Engine Model	Cat C7.1 ACERT®
Engine Type	6-cylinder, turbocharged, aftercooled diesel
Displacement	7.1 L (434 in³)
Net Power (SAE J1995)	225 hp (168 kW) @ 2,100 rpm
Emissions Compliance	EPA Tier 4 Final / EU Stage V
Fuel Tank Capacity	~75.7 gal (286.5 L)
Transmission	Cat planetary powershift
Gears	4 forward / 4 reverse
Top Speed (Forward)	~24 mph (39 km/h)
Drive System	Full-time 4WD

📏 3. Operating Specifications

Specification	Detail
Operating Weight	42,275 – 44,153 lbs (19,176 – 20,027 kg) (varies by configuration)
Rated Payload (ISO)	~18,300 lbs (8,300 kg)
Static Tipping Load (Full Turn)	~36,000 lbs (16,329 kg)
Breakout Force (at Bucket)	~25,000 – 26,000 lbs (111 – 116 kN)
Lift Capacity (Full Height)	~11,700 lbs (5,307 kg)
Lift Capacity (50% of Full Height)	~18,300 lbs (8,300 kg)
Dump Height (Full Turn)	~11.5 ft (3.5 m)
Dump Reach (Full Turn)	~3.5 ft (1.1 m)
Ground Clearance	~1.65 ft (503 mm)
Wheelbase	~11.7 ft (3.57 m)

🪣 4. Bucket & Attachments

Specification	Detail
Standard Bucket Capacity (SAE 2:1)	3.0 – 3.8 cu yd (2.3 – 2.9 m³)
Bucket Width	108 – 120 in (2,743 – 3,048 mm)
Attachment System	Cat Pin Grabber Coupler (quick coupler)
Available Attachments	Forks, grapples, snow blades, pallet forks, brush cutters, rippers, augers, and more
Tire Options	23.5R25 or 20.5R25 radial tires (L5 tread pattern)

🖥️ 5. Technology & Operator Environment

📱 Cat GRADE with 2D (Standard)

Laser, GPS, or machine-guided grading system
Real-time slope, depth, and cross-slope guidance
Improves grading accuracy and productivity

🖥️ Cat PAYLOAD (Optional)

Real-time payload weighing system
Helps operators load to target payload every cycle
Increases productivity by 10–20%

📡 Cat VisionLink / Product Link™

Remote fleet monitoring and asset management
Tracks location, hours, fuel usage, diagnostic codes

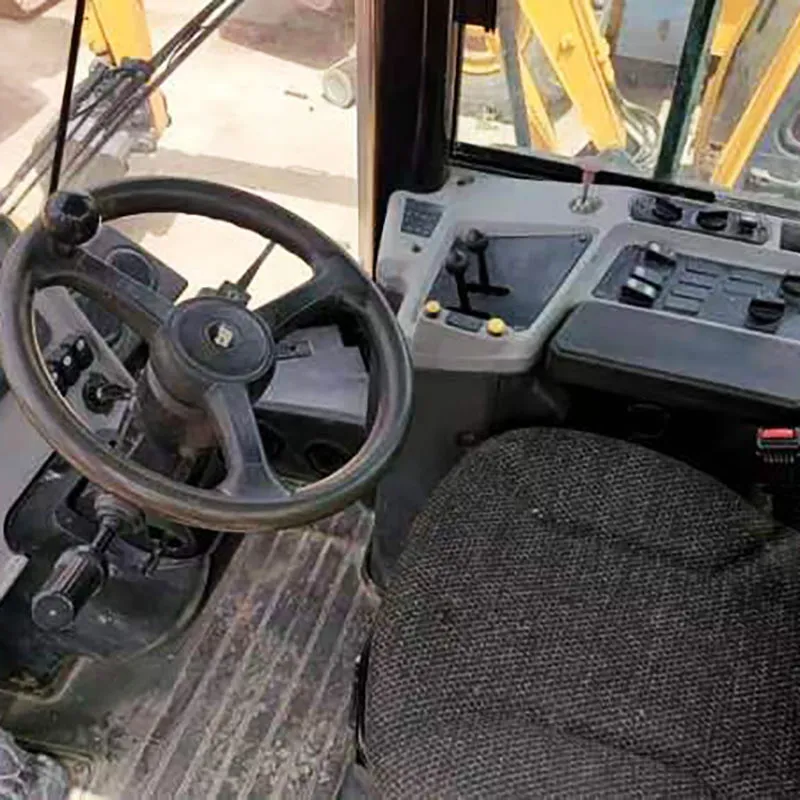

🪑 Cab & Comfort

Feature	Detail
Cab Type	ROPS/FOPS certified, pressurized & filtered
Suspension Seat	Air-suspension, heated, with armrests
Climate Control	Automatic A/C and heating
Touchscreen Monitor	10" (254 mm) LCD multi-function display
Camera System	Rearview and optional 360° vision
Sound Level	~72 dB(A) (very quiet for its class)
Lighting	LED work lights (front, rear, sides)

🛡️ 6. Safety & Durability

Feature	Detail
ROPS/FOPS	✔ Certified operator protection
Auto-Idle	Engine reduces RPM when not working (saves fuel)
Engine Idle Shutdown	Auto shut-off after preset idle time
Ground-level Engine Access	Easy daily maintenance access
Anti-Theft System	Cat Security (immobilizer)
Service Intervals	Extended intervals — up to 500 hours between oil changes
Cat Extended Service	Up to 2,000 hours or 2 years between major services

⛽ 7. Fuel Efficiency

Metric	Detail
Fuel Consumption (Typical)	~6 – 8 gal/hr (23 – 30 L/hr)
Compared to 950G	~15–20% better fuel efficiency
Eco Mode	Available — optimizes engine & hydraulics for lower fuel use

The GC series uses Caterpillar's Efficiency Mode and Smart Power hydraulic system to match engine power to demand, saving significant fuel.

💰 8. Approximate Pricing (2024)

Configuration	Approximate Price (USD)
950GC (Base)	$250,000 – $290,000
950GC with Payload + Grade	$300,000 – $350,000+
Used (2019–2022, 3,000–5,000 hrs)	$140,000 – $200,000

Prices vary by region, dealer, and configuration.

🏗️ 9. Common Applications

Application	Details
🧱 Aggregates & Quarries	Loading trucks, stockpiling
🏗️ General Construction	Excavation, grading, utility work
& Mining (Small-Medium)	Truck loading, haul road maintenance
🏭 Landfills & Recycling	Material handling, spreading
🪵 Forestry & Logging	Log handling (with grapple)
❄️ Snow Removal	With snow blade attachment
🏗️ Road Building	Paving, grading, base material loading

📊 10. Comparison: 950GC vs 950G vs 950K

Feature	950G (Old)	950GC (Current)	950K (Compact)
Engine	C7 ACERT	C7.1 ACERT	C4.4 ACERT
Power	220 hp	225 hp	126 hp
Weight	~42,000 lbs	~43,000 lbs	~36,000 lbs
Payload	~18,000 lbs	~18,300 lbs	~14,000 lbs
Bucket	3.0–3.8 cu yd	3.0–3.8 cu yd	2.0–2.5 cu yd
Technology	Basic	Grade + Payload ready	Basic
Fuel Eff.	Good	~15% better	Very Good

✅ 11. Key Advantages (Summary)

✅ Advantage	Explanation
🔋 Fuel Efficient	Up to 20% less fuel vs. previous gen
🖥️ Smart Technology	Grade, Payload, VisionLink ready
🪑 Operator Comfort	Best-in-class cab, low noise, excellent visibility
🔧 Low Maintenance	500-hr oil change, 2,000-hr service intervals
💪 Powerful & Durable	225 hp, heavy-duty axles & drivetrain
🌍 Emissions Compliant	Tier 4 Final / Stage V
📈 High Productivity	Fast cycle times, optimized hydraulics

🏁 12. Verdict

The Cat 950GC is one of the best mid-size wheel loaders on the market. It strikes an excellent balance between power, efficiency, technology, and operator comfort. Whether you're in construction, aggregates, or mining, the 950GC delivers high productivity with lower operating costs compared to competitors like Komatsu WA320-8, Volvo L120H, or John Deere 644K.
