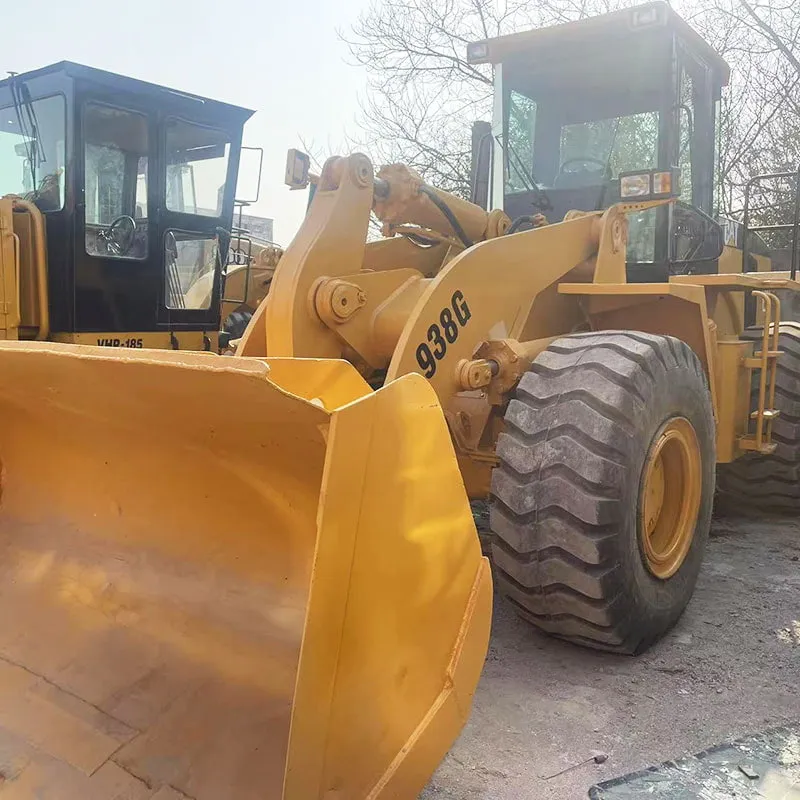

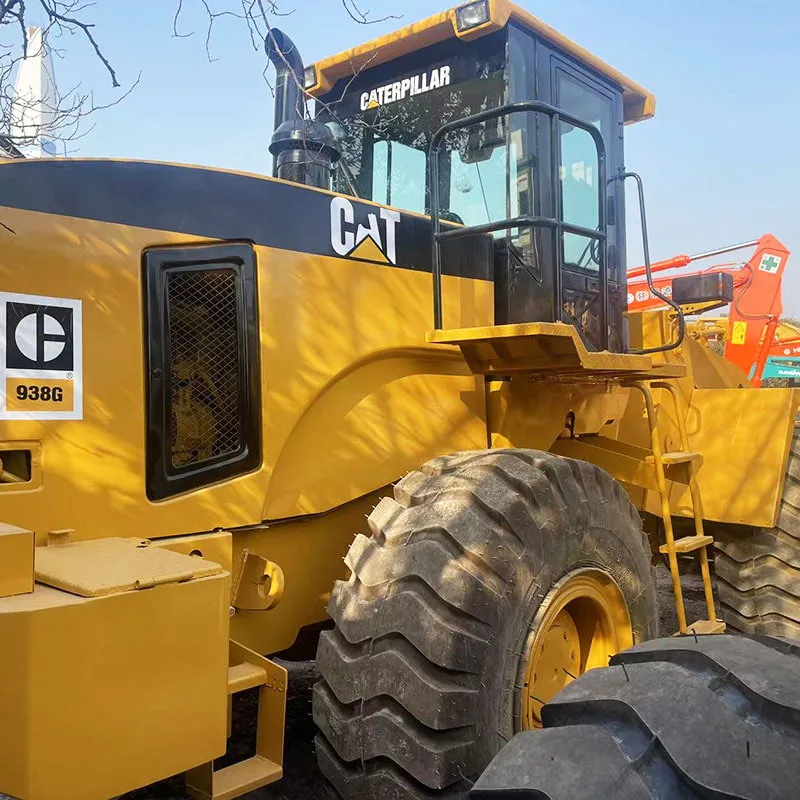

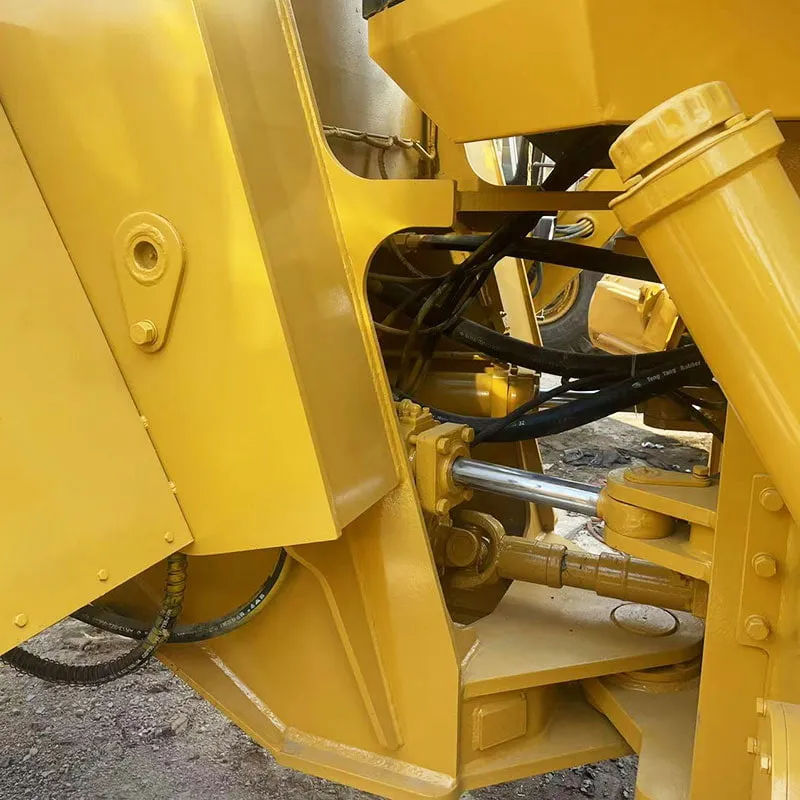

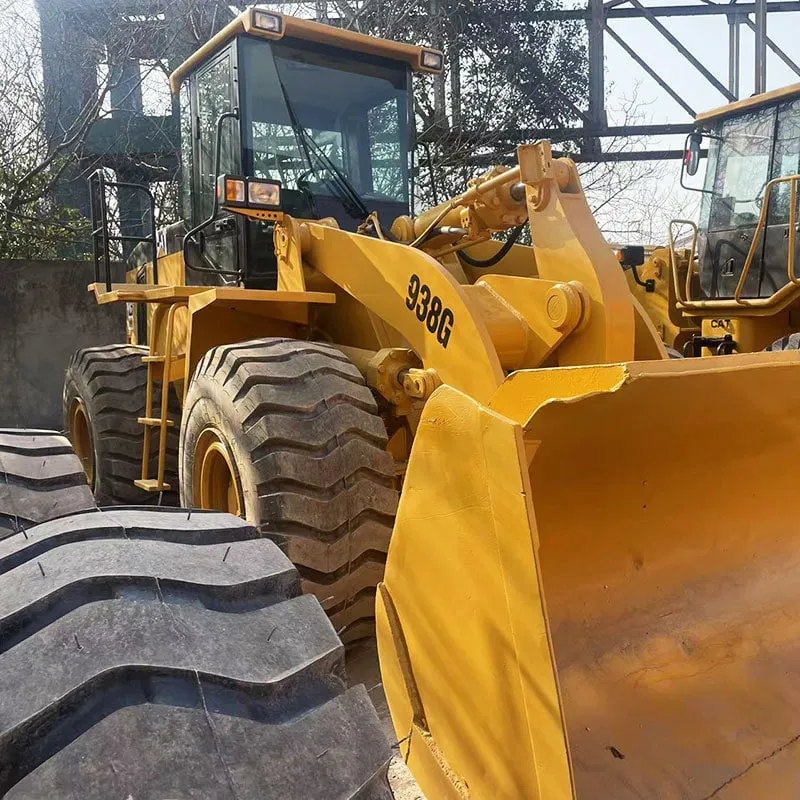

Used Caterpillar 938GLoader

Reading: 47

📌 1. OVERVIEW

Parameter	Details
Manufacturer	Caterpillar Inc.
Series	G Series (Compact/Medium Wheel Loader)
Model	938G
Predecessor	938F
Application	Loading, carrying, leveling, grading, ditch cleaning, stockpiling
Production	~2014 – Present

The Cat 938G is a compact utility wheel loader designed for versatility, fuel efficiency, and operator comfort. It sits in the mid-size range of Cat's wheel loader lineup (between the 924G and 950G).

🔧 2. ENGINE SPECIFICATIONS

Spec	Details
Engine Model	Cat® C4.4 ACERT® (Tier 4 Final / Stage V)
Type	4-cylinder, turbocharged, aftercooled diesel
Displacement	4.4 L (268 cu in)
Net Power	93 HP (69 kW) @ 2,200 rpm
Torque Rise	35% (excellent low-end torque)
Emissions	Tier 4 Final / EU Stage V (DPF + SCR optional)
Fuel Tank	~52 gal (197 L)
Fuel Consumption	~5–7 gal/hr (varies by application)

✅ The C4.4 ACERT engine is known for reliability, fuel efficiency, and low maintenance costs.

& 3. OPERATING WEIGHT & DIMENSIONS

Spec	Metric	Imperial
Operating Weight	15,876 – 16,329 kg	35,000 – 36,000 lbs
Bucket Capacity (SAE 2:1)	1.1 – 1.9 m³	1.5 – 2.5 yd³
Overall Length (w/ bucket)	~7,200 mm	~23.6 ft
Overall Width	~2,450 mm	~8.0 ft
Overall Height (to cab)	~3,100 mm	~10.2 ft
Wheelbase	~2,900 mm	~9.5 ft
Ground Clearance	~420 mm	~16.5 in

💪 4. PERFORMANCE / LIFTING CAPACITY

Spec	Details
Rated Operating Capacity (ROC)	6,350 kg (14,000 lbs)
Tipping Load (50% of tip)	12,701 kg (28,000 lbs)
Breakout Force (at bucket)	~54 kN (12,140 lbf)
Lift Height (to hinge pin)	~3,300 mm (10.8 ft)
Dump Height	~2,400 mm (7.9 ft)
Dump Reach	~950 mm (3.1 ft)
Travel Speed (Forward)	0 – 38 km/h (0 – 24 mph)
Travel Speed (Reverse)	0 – 25 km/h (0 – 15.5 mph)
Gradeability	30° (58%)

🔄 5. TRANSMISSION & HYDRAULICS

Feature	Details
Transmission	Cat Auto-Shift (fully automatic powershift)
Gears	4 forward / 4 reverse
Hydraulic System	Load-Sensing + Pressure-Compensated (LS/PC)
Hydraulic Flow	~170 L/min (45 gpm)
System Pressure	345 bar (5,000 psi)
Cycle Time (Load & Return)	~5.5 – 6.5 sec

🔑 The Auto-Shift transmission eliminates clutch operation — just push a lever and the machine shifts automatically for optimal performance.

🏗️ 6. KEY FEATURES & TECHNOLOGY

Feature	Description
🎛️ Electronic Throttle Control (ETC)	Optimizes engine speed for fuel savings
🔄 Automatic Engine Idle	Engine idles down when not in use (saves fuel)
📐 Z-Bar Linkage	Provides excellent breakout force & parallel lift
🖥️ Cat Product Link™ (Optional)	Telematics — remote monitoring, diagnostics, fleet management
📹 Rearview Camera (Optional)	Improved visibility & safety
❄️ Heated Cab & Mirrors (Optional)	Cold weather operation
🔊 Noise Level	~74 dB(A) — relatively quiet for its class
🛡️ ROPS/FOPS Cab	Roll-Over & Falling Object Protective Structure
🪑 Air Suspension Seat	Comfortable for long shifts
💡 LED Work Lights	Excellent nighttime visibility
🔧 Ground-Level Service Points	Easy daily maintenance access

🔩 7. ATTACHMENTS & VERSATILITY

The 938G is highly versatile with Cat Work Tools quick coupler:

Attachment	Use
🪣 General Purpose Bucket	Loading, stockpiling
🧹 Brush Grapple	Landscaping, debris
🔨 Pallet Forks	Material handling
❄️ Snow Blade / Snow Push	Winter maintenance
🪓 Log Grapple	Logging
🔧 Bolt-On Cutting Edge	Extended bucket life
🧹 Sweeper	Street cleaning
🔩 Auger	Post hole digging

📊 8. COMPARISON (G Series Lineup)

Model	HP	Operating Weight	Bucket Cap.	ROC
924G	74 HP	11,100 kg	1.0–1.4 m³	4,500 kg
⭐ 938G	93 HP	15,876 kg	1.1–1.9 m³	6,350 kg
950G	127 HP	18,500 kg	1.8–3.0 m³	8,600 kg
966G	188 HP	22,500 kg	2.8–4.5 m³	12,000 kg

The 938G is the sweet spot for rental fleets, municipalities, landscapers, and general contractors who need more than a 924G but don't need the size of a 950G.

✅ 9. ADVANTAGES

✅ Advantage	Explanation
🔥 Fuel Efficiency	Auto-idle + ETC = 10-15% fuel savings vs. older models
🧘 Operator Comfort	Climate-controlled cab, low noise, excellent visibility
🔧 Low Maintenance	Extended service intervals (500/1000/2000 hr)
💪 High Productivity	Fast cycle times, strong breakout force
📱 Smart Technology	Product Link telematics for fleet management
💰 Strong Resale Value	Cat machines hold value exceptionally well
🌍 Emissions Compliant	Tier 4 Final / Stage V — works globally

⚠️ 10. LIMITATIONS

⚠️ Limitation	Explanation
📏 Not for heavy mining	Too small for large-scale quarry/mining operations
💸 Higher purchase price	More expensive than competitors (Komatsu, Volvo)
🔧 Dealer dependency	Parts & service mainly through Cat dealers
🏋️ Limited lift vs. 950G+	If you need 8,000+ kg ROC, go bigger

🎯 11. TYPICAL APPLICATIONS

Industry	Use Case
🏗️ Construction	Material loading, site prep
🌳 Landscaping	Dirt, mulch, gravel moving
🏛️ Municipal	Snow removal, road maintenance
🏭 Rental	High-demand rental fleet machine
🌾 Agriculture	Feed, manure, grain handling
🏭 Waste & Recycling	Scrap handling, stockpiling
🪵 Forestry	Log loading (with grapple)

💰 12. APPROXIMATE PRICING (2024 Estimate)

Configuration	Price Range (USD)
New (Base)	$120,000 – $150,000
New (Fully Loaded)	$150,000 – $180,000
Used (2018–2022, 3K–5K hrs)	$75,000 – $110,000
Rental (Daily)	$400 – $700/day
Rental (Monthly)	$3,000 – $5,500/month

(Prices vary by region, dealer, and configuration)

🏁 SUMMARY

Category	Rating
💪 Power	⭐⭐⭐⭐ (93 HP — excellent for its class)
⛽ Fuel Efficiency	⭐⭐⭐⭐⭐ (Tier 4 Final + Auto-Idle)
🧘 Operator Comfort	⭐⭐⭐⭐⭐ (Best-in-class cab)
🔧 Reliability	⭐⭐⭐⭐⭐ (Cat reputation)
💰 Value for Money	⭐⭐⭐⭐ (Higher upfront, lower TCO)
🌐 Versatility	⭐⭐⭐⭐⭐ (50+ attachments available)

🏆 Bottom Line: The Cat 938G is one of the best compact wheel loaders in the market — offering the perfect balance of power, efficiency, comfort, and productivity. It's a workhorse that excels in rental fleets, municipal work, landscaping, and general construction. If you need a reliable, fuel-efficient, and operator-friendly mid-size loader — the 938G is an excellent choice. 🚜💪
