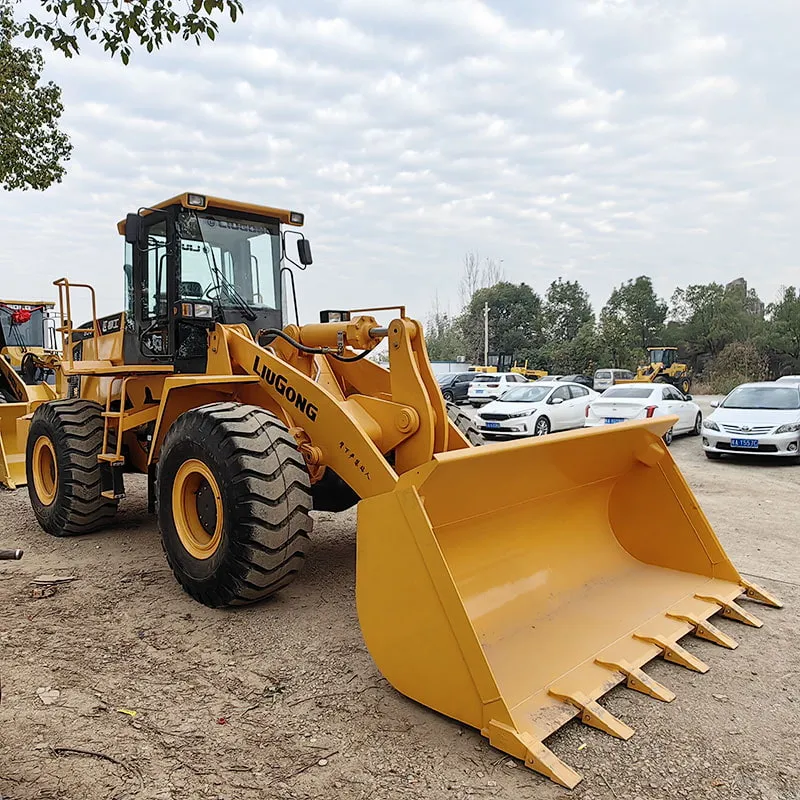

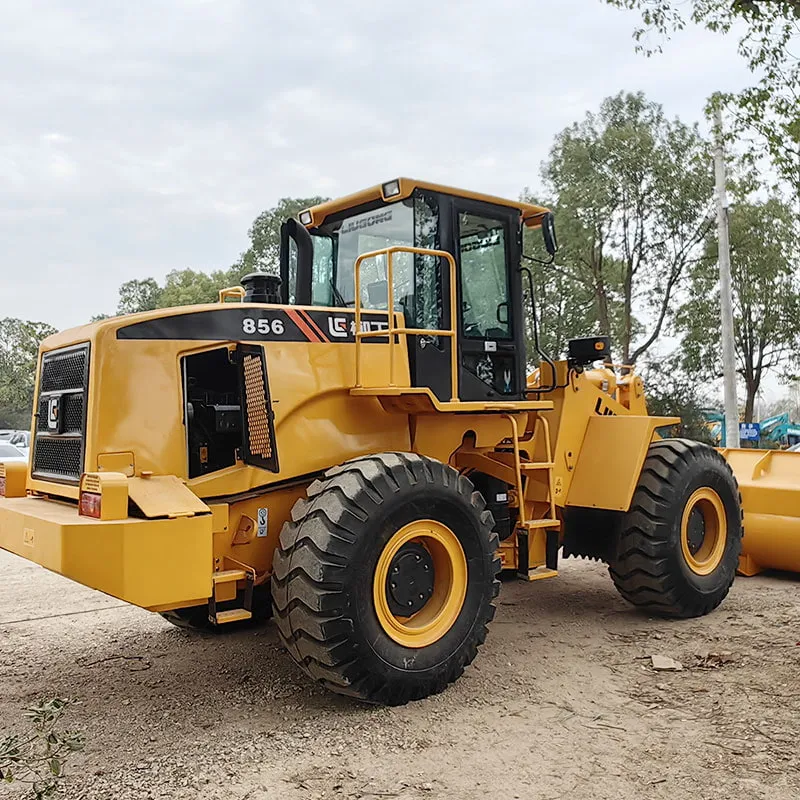

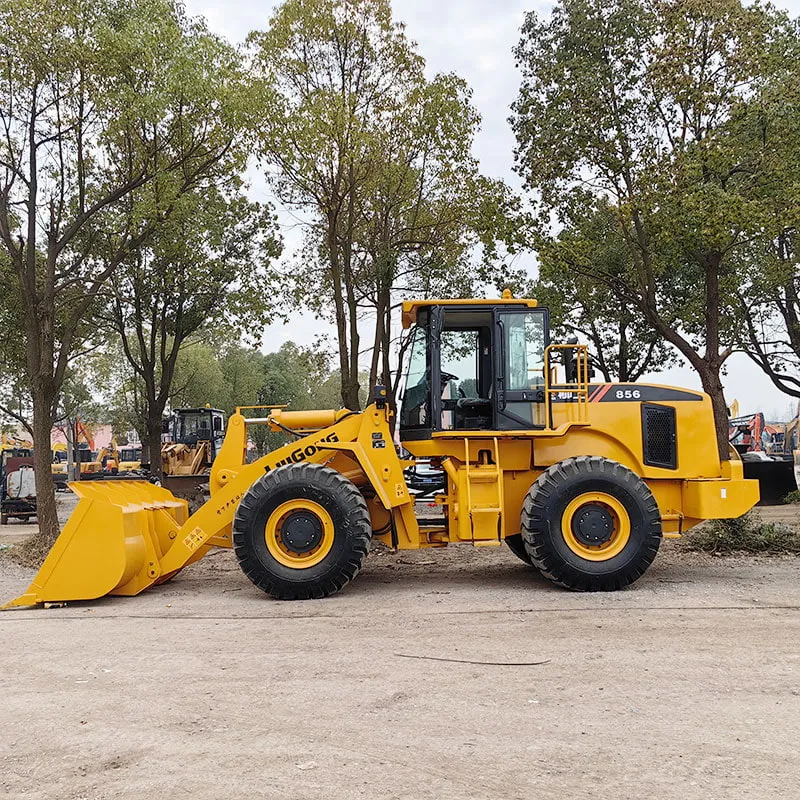

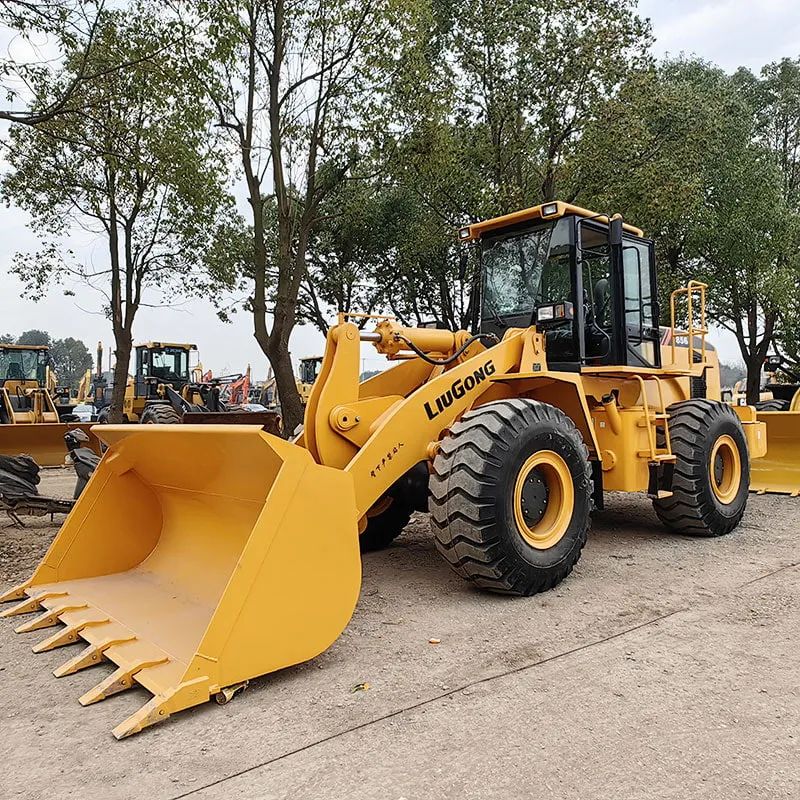

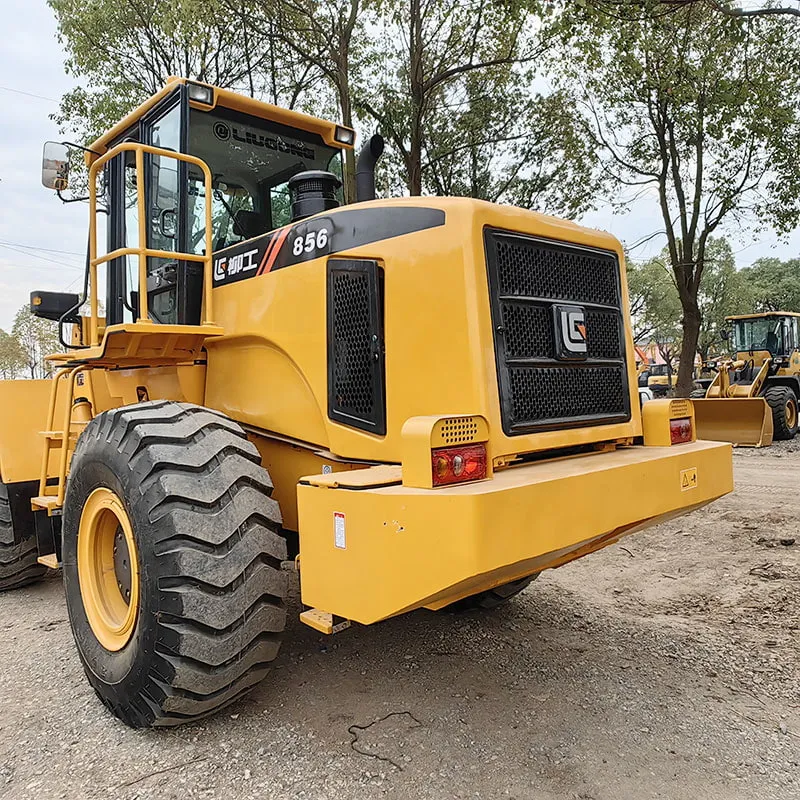

Used Liugong 856Loader

Reading: 11

🏭 1. Overview

Item	Detail
Manufacturer	Guangxi Liugong Machinery Co., Ltd. (柳工)
Model	CLG856 / CLG856H
Type	Wheel Loader
Class	5-Ton (Rated Payload: 5,000 kg)
Origin	Liuzhou, Guangxi, China
Market Position	Mid-to-high end, competing with CAT 950K, XCMG LW500FN, SDLG L956F

The CLG856 is one of Liugong's flagship 5-ton wheel loaders, widely used in mining, construction, quarries, ports, and large-scale material handling operations.

& 2. Engine

Specification	Detail

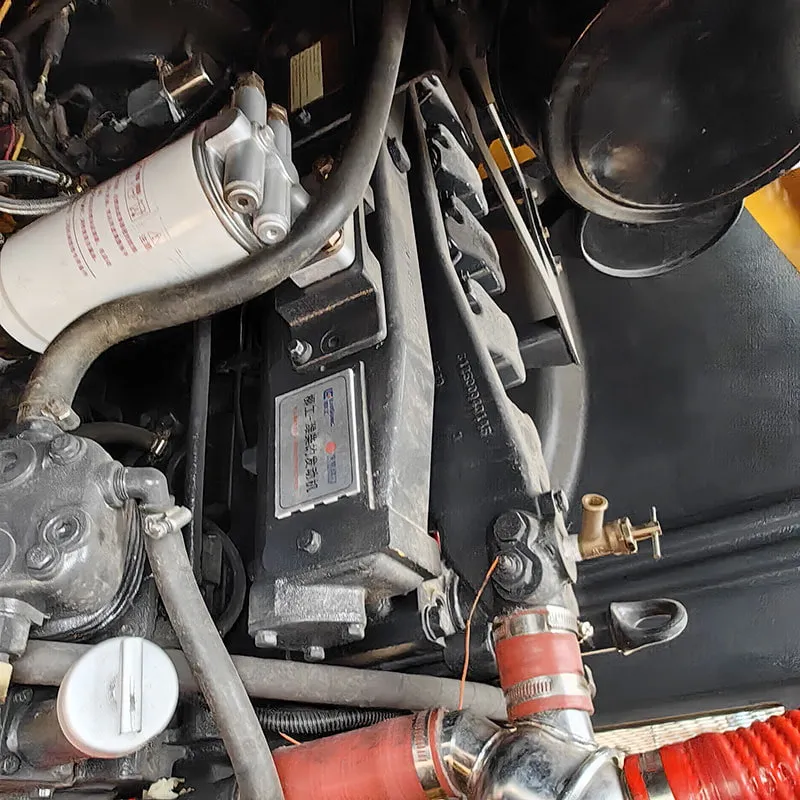

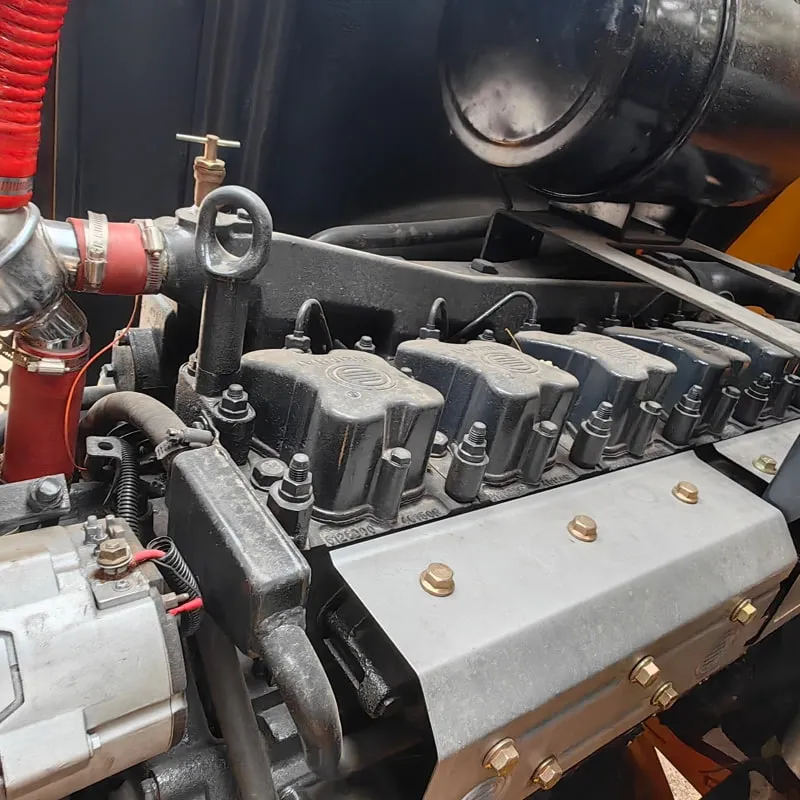

Engine Model	Cummins QSB6.7-C220 (Turbocharged & Intercooled Diesel)
Power Output	162 kW (217 HP) @ 2,200 rpm
Emissions	China III / EPA Tier 3 (market dependent)
Displacement	6.7 L
Fuel Tank Capacity	~300 L
Cooling System	Pressurized radiator with fan

✅ The Cummins QSB6.7 is known for reliability, fuel efficiency, and easy maintenance, making it a popular choice in the 5-ton class globally.

🔧 3. Transmission & Drivetrain

Component	Specification
Transmission	ZF 4WG200 Powershift (4F/4R)
Torque Converter	ZF Turbine-type
Drive Type	Full-time 4WD
Axles	Liugong Heavy-Duty Oscillating Axles
Steering	Articulated (Center-pivot steering)
Turning Radius	~6,500 mm (inner)
Max Speed (Forward/Reverse)	~35 km/h / ~30 km/h
Gradeability	30° (~58%)

🛢️ 4. Hydraulic System

Specification	Detail
System Type	Load-Sensing Hydraulic System
Working Pressure	17.5 MPa (2,538 psi)
Pump Flow	~240 L/min (Gear pump + variable displacement)
Steering Flow	~60 L/min

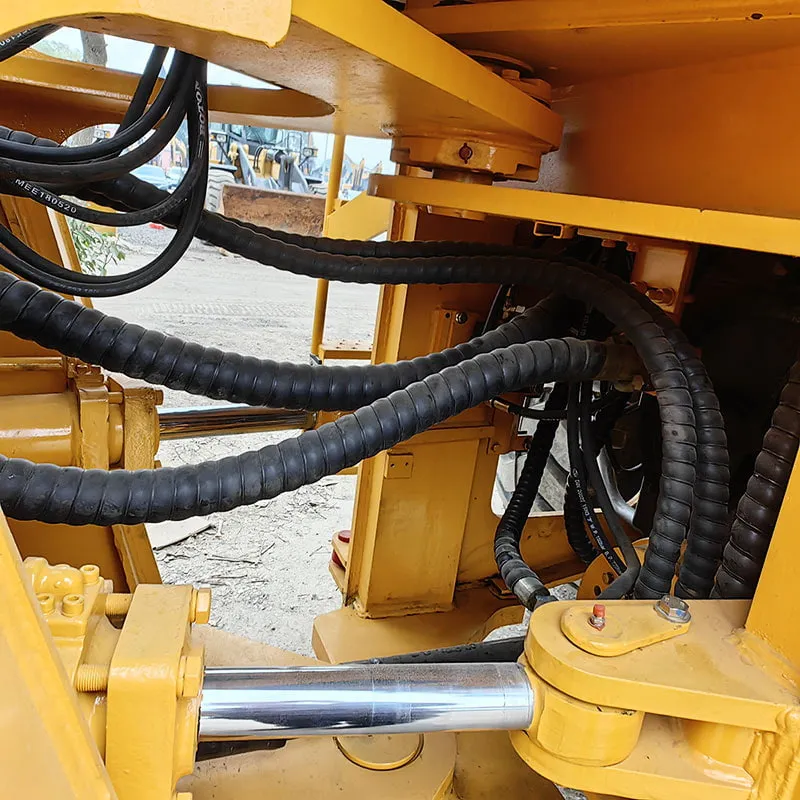

Lift Cylinders	2 × Large bore cylinders
Tilt Cylinders	1

📐 5. Dimensions & Weights

Parameter	Value
Operating Weight	~17,000 kg
Overall Length (with bucket)	~8,200 mm
Overall Width	~3,000 mm
Overall Height (to cab top)	~3,300 mm
Wheelbase	~3,200 mm
Ground Clearance	~450 mm
Tire Size	23.5-25 (18PR)
Bucket Capacity (Standard)	3.0 m³
Bucket Capacity (High Dump)	3.3 m³ (optional)

💪 6. Performance Data

Performance Metric	Value
Rated Payload	5,000 kg
Max Breakout Force (Bucket)	~175 kN
Max Traction Force	~160 kN
Max Lift Height (Dump)	~3,100 mm
Max Dump Reach	~1,100 mm
Bucket Digging Force	~170 kN
Cycle Time (Loading)	~9–11 seconds (typical)

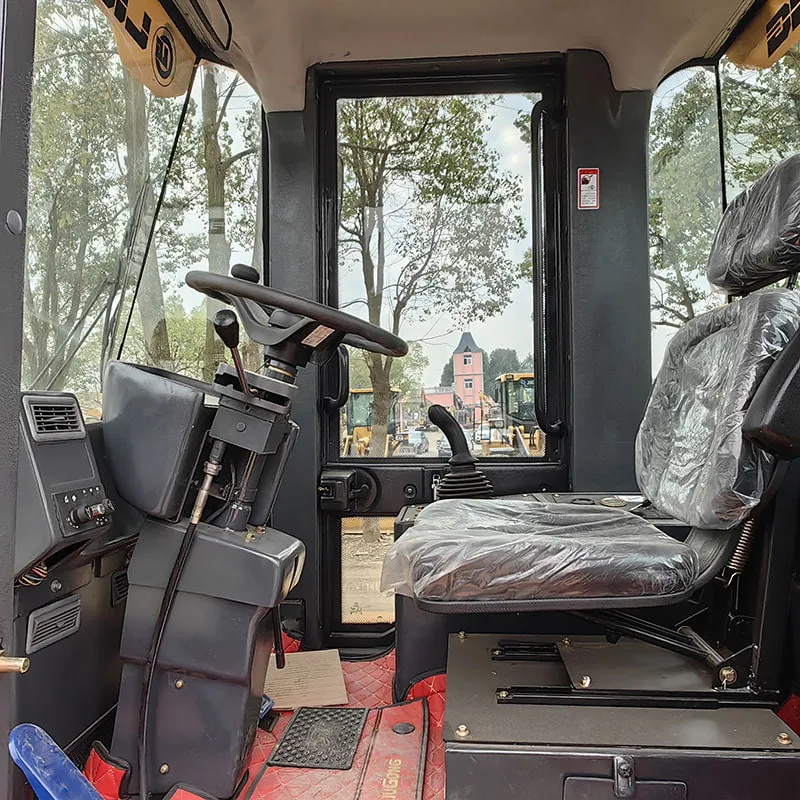

🖥️ 7. Cab & Operator Comfort

Feature	Detail
Cab Type	ROPS/FOPS Certified, Fully Enclosed
Climate Control	Air Conditioning + Heater
Seat	Air-suspended, fully adjustable, with armrests
Control	Pilot-operated joystick (single lever for lift/tilt/steer)
Display	LCD instrument panel (engine info, diagnostics)
Visibility	Large panoramic glass, excellent all-around view
Noise Level	≤ 78 dB(A) (inside cab)
Safety	Reversing camera, rear-view mirror, seat belt, alarm

🛡️ 8. Key Features & Highlights

✅ Feature	Description
🔄 ZF Transmission	Smooth shift, durable, globally proven
⚡ Cummins Engine	Low fuel consumption (~28–32 L/h), high torque at low RPM
🎯 Load-Sensing Hydraulics	Efficient power distribution, faster cycle times
🧠 Intelligent Control	Auto-idle, load-sensing, operator-friendly
🔧 Easy Maintenance	Ground-level service points, centralized lubrication
🏗️ Heavy-Duty Structure	Reinforced frame, thick wear plates, long service life
📹 Safety Tech	Camera, alarm, ROPS/FOPS cab
🌏 Global Support	Liugong has 300+ dealers in 100+ countries

📊 9. Comparison with Competitors

Spec	Liugong 856	CAT 950K	XCMG LW500FN	SDLG L956F
Rated Load	5,000 kg	5,000 kg	5,000 kg	5,000 kg
Engine Power	162 kW	168 kW	162 kW	162 kW
Bucket Cap.	3.0 m³	3.0 m³	3.0 m³	3.0 m³
Transmission	ZF	ZF	ZF	ZF
Price (approx.)	💰💰	💰💰💰💰	💰💰	💰💰
Value for Money	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

🏆 Liugong 856 is widely regarded as offering the BEST value-for-money in the 5-ton class.

🌍 10. Typical Applications

🏗️ Construction	⛏️ Mining & Quarrying	📦 Logistics & Ports	🏭 Material Handling
Road building	Open-pit mining	Container handling	Aggregate yards
Building sites	Stone quarrying	Bulk material loading	Waste management
Earthmoving	Coal loading	Stockpiling	Sand & gravel

🔢 11. Pricing (Estimated, 2024)

Region	Approximate Price (USD)
China	$85,000 – $110,000
Southeast Asia	$95,000 – $120,000
Middle East / Africa	$100,000 – $130,000
Europe / Americas	$110,000 – $140,000

(Prices vary by configuration, emission standard, and market conditions)

📝 12. Summary — Why Choose Liugong 856?

✅ Pros	⚠️ Cons
Excellent value for money	Brand perception still behind CAT/Komatsu in some markets
Reliable Cummins + ZF powertrain	Parts availability varies by region
Comfortable & modern cab	After-sales network growing but not as dense as top brands
Low fuel consumption	Resale value slightly lower than CAT/Komatsu
Strong in mining & heavy-duty work	—

🎯 Bottom Line:

The LiuGong CLG856 is a robust, reliable, and cost-effective 5-ton wheel loader powered by a proven Cummins QSB6.7 engine and ZF transmission. It delivers performance comparable to CAT 950K and XCMG LW500FN but at a more competitive price, making it an excellent choice for mining, construction, and heavy material handling operations worldwide. 💪🚜

Would you like more details on any specific aspect (e.g., maintenance, spare parts, or comparison with another model)? 😊
